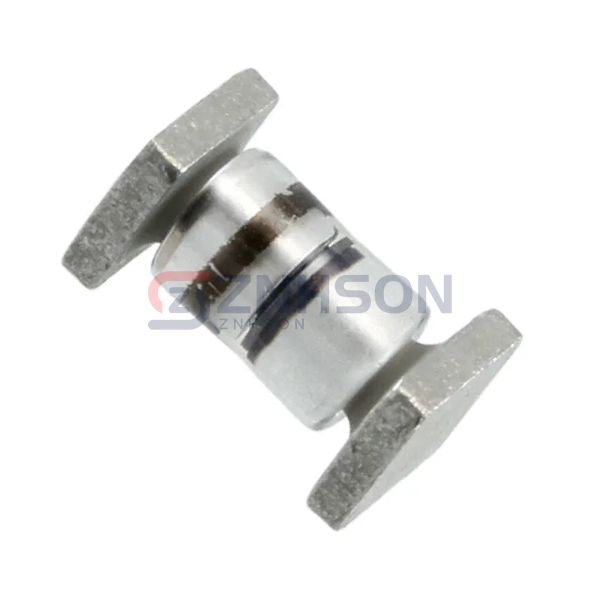

JANTX1N4472CUS
Microsemi Corporation
Microsemi Corporation
DIODE ZENER 20V 1.5W D5A
$27.08
Available to order
Reference Price (USD)
1+
$27.07500
500+
$26.80425
1000+
$26.5335
1500+
$26.26275
2000+
$25.992
2500+
$25.72125
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The JANTX1N4472CUS by Microsemi Corporation is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the JANTX1N4472CUS is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 20 V
- Tolerance: ±2%
- Power - Max: 1.5 W
- Impedance (Max) (Zzt): 12 Ohms
- Current - Reverse Leakage @ Vr: 50 nA @ 16 V
- Voltage - Forward (Vf) (Max) @ If: 1 V @ 200 mA
- Operating Temperature: -65°C ~ 175°C
- Mounting Type: Surface Mount
- Package / Case: SQ-MELF, A
- Supplier Device Package: D-5A
Related Products
Diotec Semiconductor
SMZ160
Microchip Technology
SMBJ5369C/TR13
Microchip Technology
1N5928APE3/TR12
onsemi

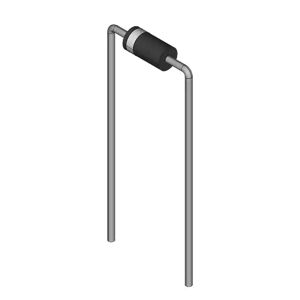

GZB12B
Taiwan Semiconductor Corporation

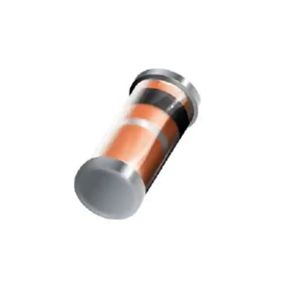

BZV55B13 L0G
Diotec Semiconductor

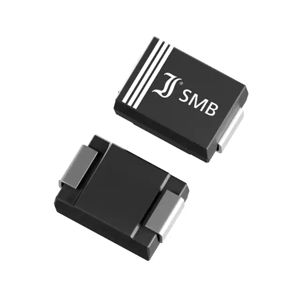

Z2SMB6.8
Microchip Technology

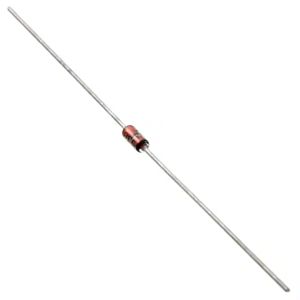

JANTXV1N4118-1/TR
