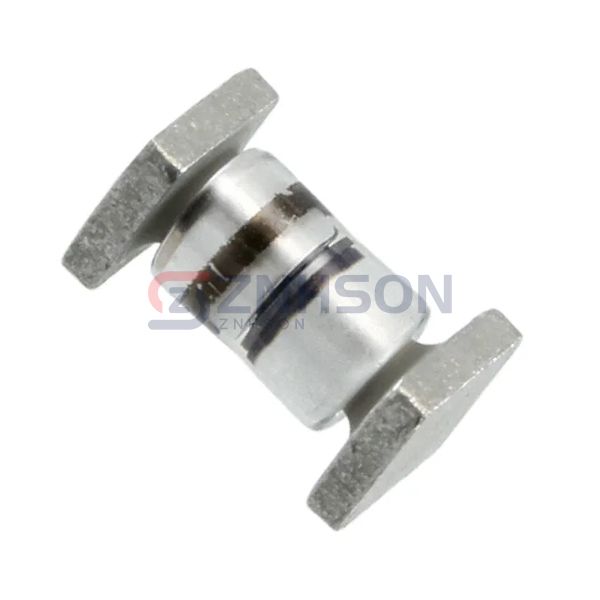

JANTX1N4472US/TR
Microchip Technology
Microchip Technology
VOLTAGE REGULATOR
$13.95
Available to order
Reference Price (USD)
1+
$13.95000
500+
$13.8105
1000+
$13.671
1500+
$13.5315
2000+
$13.392
2500+
$13.2525
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The JANTX1N4472US/TR from Microchip Technology is a high-performance Zener diode designed for precision voltage regulation in various electronic circuits. As part of the Discrete Semiconductor Products category, this single Zener diode offers exceptional stability and reliability, making it ideal for applications requiring consistent voltage reference. Key features include low impedance, sharp breakdown characteristics, and excellent temperature stability. These diodes are widely used in power supplies, voltage clippers, and surge protectors. For instance, the JANTX1N4472US/TR is commonly employed in automotive electronics, telecommunications equipment, and industrial control systems to ensure stable voltage levels and protect sensitive components from voltage spikes.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 20 V
- Tolerance: ±5%
- Power - Max: 1.5 W
- Impedance (Max) (Zzt): 650 Ohms
- Current - Reverse Leakage @ Vr: 50 nA @ 16 V
- Voltage - Forward (Vf) (Max) @ If: 1.5 V @ 1 A
- Operating Temperature: -65°C ~ 175°C
- Mounting Type: Surface Mount
- Package / Case: SQ-MELF, A
- Supplier Device Package: D-5A
