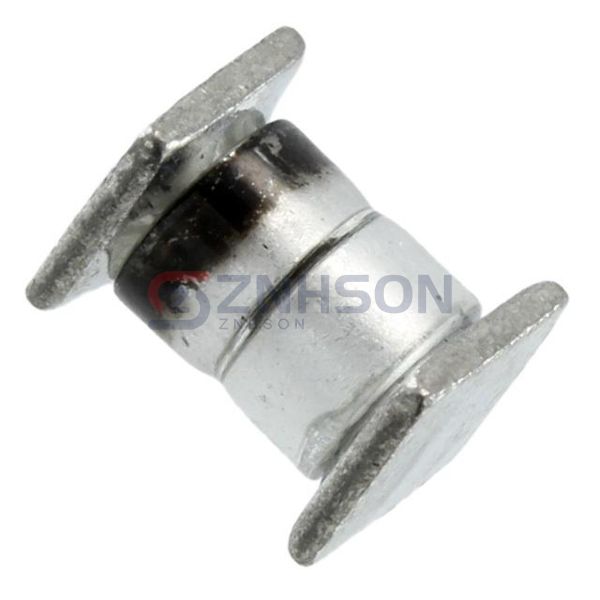

JANTX1N4957CUS
Microsemi Corporation
Microsemi Corporation
DIODE ZENER 9.1V 5W D5B
$19.65
Available to order
Reference Price (USD)
1+
$19.65000
500+
$19.4535
1000+
$19.257
1500+
$19.0605
2000+
$18.864
2500+
$18.6675
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The JANTX1N4957CUS by Microsemi Corporation is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the JANTX1N4957CUS is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 9.1 V
- Tolerance: ±2%
- Power - Max: 5 W
- Impedance (Max) (Zzt): 2 Ohms
- Current - Reverse Leakage @ Vr: 25 µA @ 6.9 V
- Voltage - Forward (Vf) (Max) @ If: 1.5 V @ 1 A
- Operating Temperature: -65°C ~ 175°C
- Mounting Type: Surface Mount
- Package / Case: E-MELF
- Supplier Device Package: D-5B
