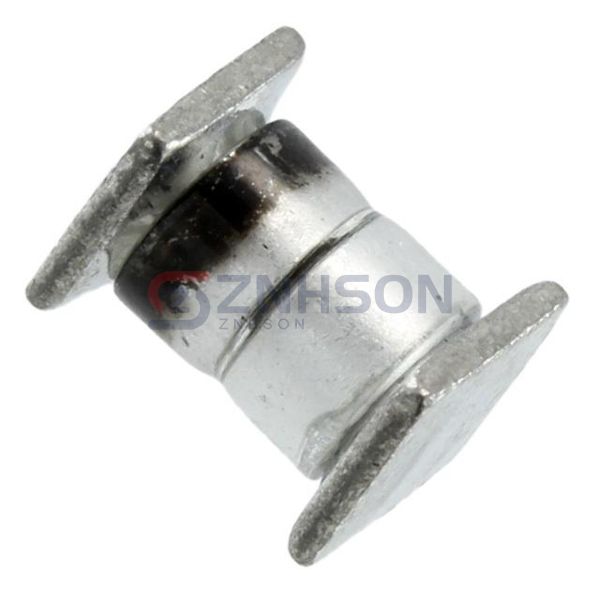

JANTX1N4966DUS
Microsemi Corporation
Microsemi Corporation
DIODE ZENER 22V 5W D5B
$31.00
Available to order
Reference Price (USD)
1+
$31.00500
500+
$30.69495
1000+
$30.3849
1500+
$30.07485
2000+
$29.7648
2500+
$29.45475
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The JANTX1N4966DUS from Microsemi Corporation is a high-performance Zener diode designed for precision voltage regulation in various electronic circuits. As part of the Discrete Semiconductor Products category, this single Zener diode offers exceptional stability and reliability, making it ideal for applications requiring consistent voltage reference. Key features include low impedance, sharp breakdown characteristics, and excellent temperature stability. These diodes are widely used in power supplies, voltage clippers, and surge protectors. For instance, the JANTX1N4966DUS is commonly employed in automotive electronics, telecommunications equipment, and industrial control systems to ensure stable voltage levels and protect sensitive components from voltage spikes.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 22 V
- Tolerance: ±1%
- Power - Max: 5 W
- Impedance (Max) (Zzt): 5 Ohms
- Current - Reverse Leakage @ Vr: 2 µA @ 16.7 V
- Voltage - Forward (Vf) (Max) @ If: 1.5 V @ 1 A
- Operating Temperature: -65°C ~ 175°C
- Mounting Type: Surface Mount
- Package / Case: E-MELF
- Supplier Device Package: D-5B
