JANTX1N5420US/TR
Microchip Technology
Microchip Technology
RECTIFIER UFR,FRR
$13.00
Available to order
Reference Price (USD)
1+
$13.00500
500+
$12.87495
1000+
$12.7449
1500+
$12.61485
2000+
$12.4848
2500+
$12.35475
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic designs with the JANTX1N5420US/TR single rectifier diode from Microchip Technology. This diode, part of the Discrete Semiconductor Products family, offers exceptional rectification efficiency and thermal stability. Its compact design and high current capacity make it suitable for space-constrained applications like mobile devices, laptops, and IoT gadgets. The JANTX1N5420US/TR is also ideal for automotive electronics, including alternators and voltage regulators, where reliability is critical. Microchip Technology's commitment to innovation ensures that the JANTX1N5420US/TR meets the highest industry standards for performance and longevity.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 600 V
- Current - Average Rectified (Io): 3A
- Voltage - Forward (Vf) (Max) @ If: 1.5 V @ 9 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 400 ns
- Current - Reverse Leakage @ Vr: 1 µA @ 600 V
- Capacitance @ Vr, F: -
- Mounting Type: Surface Mount
- Package / Case: SQ-MELF, B
- Supplier Device Package: D-5B
- Operating Temperature - Junction: -65°C ~ 175°C
Related Products
Microchip Technology
JANS1N5806
Panjit International Inc.
BAT42W_R1_00001
Vishay General Semiconductor - Diodes Division
1N4002GP-E3/54
onsemi
MBRD360T4G
Rohm Semiconductor
RFUH30TS6SGC11
Panjit International Inc.
PCDB0465G1_T0_00001
STMicroelectronics
STPS6M100SF
Diotec Semiconductor
SK16
Panjit International Inc.

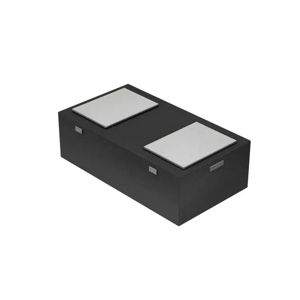

BAT54FN2-AU_R1_000A1
