JANTX1N5534B-1
Microchip Technology
Microchip Technology
DIODE ZENER 14V 500MW DO35
$7.16
Available to order
Reference Price (USD)
105+
$8.82448
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The JANTX1N5534B-1 from Microchip Technology is a high-performance Zener diode designed for precision voltage regulation in various electronic circuits. As part of the Discrete Semiconductor Products category, this single Zener diode offers exceptional stability and reliability, making it ideal for applications requiring consistent voltage reference. Key features include low impedance, sharp breakdown characteristics, and excellent temperature stability. These diodes are widely used in power supplies, voltage clippers, and surge protectors. For instance, the JANTX1N5534B-1 is commonly employed in automotive electronics, telecommunications equipment, and industrial control systems to ensure stable voltage levels and protect sensitive components from voltage spikes.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 14 V
- Tolerance: ±5%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 100 Ohms
- Current - Reverse Leakage @ Vr: 10 nA @ 12.6 V
- Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 200 mA
- Operating Temperature: -65°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: DO-204AH, DO-35, Axial
- Supplier Device Package: DO-35 (DO-204AH)
Related Products
onsemi
MMBZ5230BLT1G
Microchip Technology
1N5545B/TR
Microchip Technology
JANTXV1N5528BUR-1/TR
Microchip Technology
JANTXV1N4493US
Solid State Inc.
1N3317R
Solid State Inc.
BZY93C22
Micro Commercial Co
BZX84C10HE3-TP
Microchip Technology

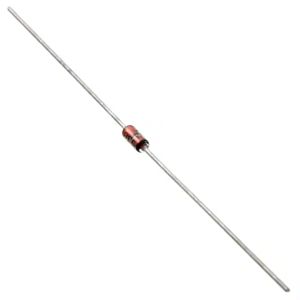

JANS1N4116-1/TR
