JANTX1N5542BUR-1
Microchip Technology
Microchip Technology
DIODE ZENER 22V 500MW DO213AA
$14.19
Available to order
Reference Price (USD)
100+
$16.08200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The JANTX1N5542BUR-1 by Microchip Technology is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the JANTX1N5542BUR-1 is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 22 V
- Tolerance: ±5%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 100 Ohms
- Current - Reverse Leakage @ Vr: 10 nA @ 19.8 V
- Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 200 mA
- Operating Temperature: -65°C ~ 175°C
- Mounting Type: Surface Mount
- Package / Case: DO-213AA (Glass)
- Supplier Device Package: DO-213AA
Related Products
Microchip Technology
1N5943BPE3/TR12
Microchip Technology
SMBJ5363AE3/TR13
Vishay General Semiconductor - Diodes Division
BZG05C5V1-M3-08
Vishay General Semiconductor - Diodes Division
SML4752A-E3/61
Microchip Technology
1PMT4104/TR7
onsemi
1N4742A-T50A
Microchip Technology
JAN1N6346
Microchip Technology
1PMT4134E3/TR7
Renesas Electronics America Inc

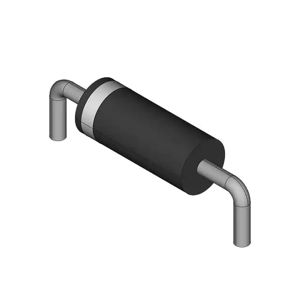

HZS9C1LTA-E
