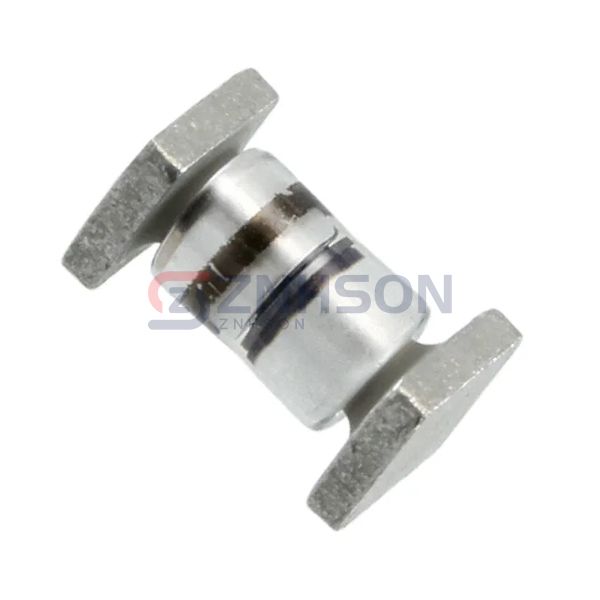

JANTX1N5553US/TR
Microchip Technology
Microchip Technology
STD RECTIFIER
$10.20
Available to order
Reference Price (USD)
1+
$10.20000
500+
$10.098
1000+
$9.996
1500+
$9.894
2000+
$9.792
2500+
$9.69
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The JANTX1N5553US/TR from Microchip Technology is a premium single rectifier diode that stands out in the Diodes - Rectifiers - Single segment. With excellent thermal characteristics and high reverse voltage capability, it is perfect for high-frequency applications like RF modules and wireless charging systems. This diode is also widely used in automotive lighting and HVAC controls, ensuring efficient energy conversion. Microchip Technology's dedication to quality means the JANTX1N5553US/TR meets rigorous standards, providing dependable performance for both commercial and industrial applications.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 800 V
- Current - Average Rectified (Io): 3A
- Voltage - Forward (Vf) (Max) @ If: 1.3 V @ 9 A
- Speed: Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 2 µs
- Current - Reverse Leakage @ Vr: 1 µA @ 800 V
- Capacitance @ Vr, F: -
- Mounting Type: Surface Mount
- Package / Case: SQ-MELF, B
- Supplier Device Package: D-5B
- Operating Temperature - Junction: -65°C ~ 175°C
