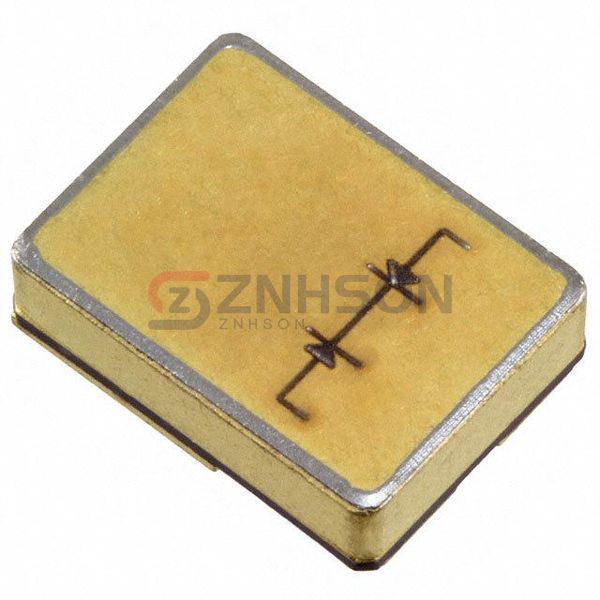

JANTX1N6843CCU3
Microchip Technology
Microchip Technology
DIODE SCHOTTKY 100V 15A SMD
$138.52
Available to order
Reference Price (USD)
100+
$129.29000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The JANTX1N6843CCU3 by Microchip Technology is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the JANTX1N6843CCU3 ensures long-term reliability even in harsh operating conditions. Trust Microchip Technology for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 100 V
- Current - Average Rectified (Io): 15A
- Voltage - Forward (Vf) (Max) @ If: 1.27 V @ 30 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 10 µA @ 100 V
- Capacitance @ Vr, F: 275pF @ 5V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: 3-SMD, Flat Lead
- Supplier Device Package: SMD
- Operating Temperature - Junction: -65°C ~ 150°C
