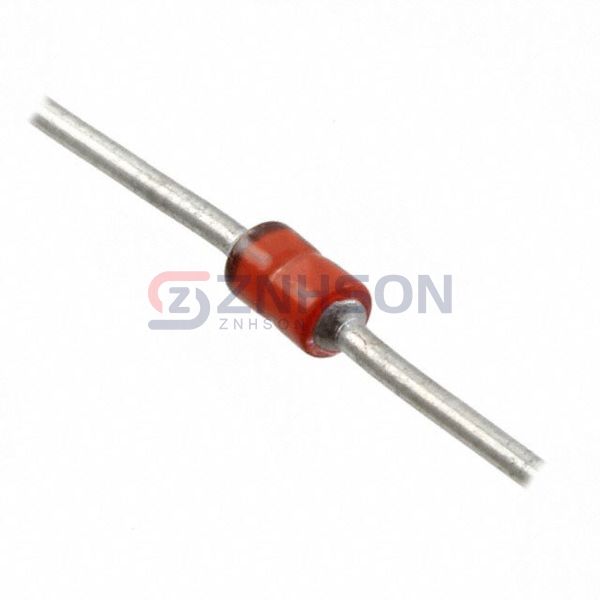

JANTXV1N3022C-1
Microchip Technology
Microchip Technology
DIODE ZENER 12V 1W DO41
$29.26
Available to order
Reference Price (USD)
100+
$24.07920
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The JANTXV1N3022C-1 by Microchip Technology is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the JANTXV1N3022C-1 is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 12 V
- Tolerance: ±2%
- Power - Max: 1 W
- Impedance (Max) (Zzt): 9 Ohms
- Current - Reverse Leakage @ Vr: 10 µA @ 9.1 V
- Voltage - Forward (Vf) (Max) @ If: 1.2 V @ 200 mA
- Operating Temperature: -55°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: DO-204AL, DO-41, Axial
- Supplier Device Package: DO-41
Related Products
Taiwan Semiconductor Corporation
BZD27C130P
Rohm Semiconductor
UDZVTE-1724B
Microchip Technology
JAN1N4959C
Microchip Technology
JANTX1N4489
Vishay General Semiconductor - Diodes Division
MMSZ5253B-E3-18
Vishay General Semiconductor - Diodes Division
PLZ4V7B-G3/H
Vishay General Semiconductor - Diodes Division
MMSZ4684-E3-08
Comchip Technology

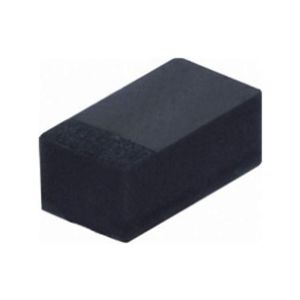

CZRER52C15
Microchip Technology

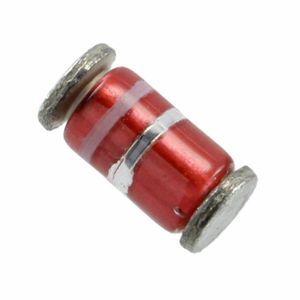

CDLL3033A
