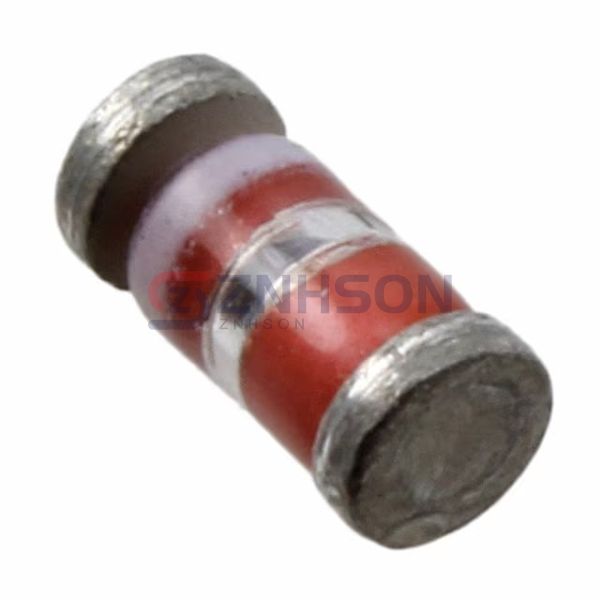

JANTXV1N969CUR-1/TR
Microchip Technology
Microchip Technology
VOLTAGE REGULATOR
$18.78
Available to order
Reference Price (USD)
1+
$18.78000
500+
$18.5922
1000+
$18.4044
1500+
$18.2166
2000+
$18.0288
2500+
$17.841
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The JANTXV1N969CUR-1/TR by Microchip Technology is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the JANTXV1N969CUR-1/TR is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 22 V
- Tolerance: ±2%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 29 Ohms
- Current - Reverse Leakage @ Vr: 500 nA @ 17 V
- Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 200 mA
- Operating Temperature: -65°C ~ 175°C
- Mounting Type: Surface Mount
- Package / Case: DO-213AA (Glass)
- Supplier Device Package: DO-213AA
Related Products
Vishay General Semiconductor - Diodes Division
ZM4734A-GS18
Microchip Technology
SMBJ5368A/TR13
Microchip Technology
1N943A/TR
Panjit International Inc.
BZX84C15_R1_00001
Comchip Technology
CZRF52C9V1
Vishay General Semiconductor - Diodes Division
BZX55B24-TR
Panjit International Inc.
BZT52-C68S_R1_00001
Microsemi Corporation

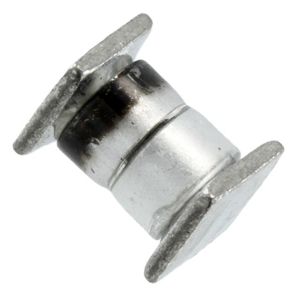

JANTX1N4971CUS
Vishay General Semiconductor - Diodes Division

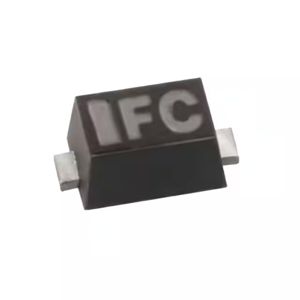

BZX584C5V6-HG3-08
