JANTXV1N969D-1/TR
Microchip Technology
Microchip Technology
VOLTAGE REGULATOR
$10.86
Available to order
Reference Price (USD)
1+
$10.86000
500+
$10.7514
1000+
$10.6428
1500+
$10.5342
2000+
$10.4256
2500+
$10.317
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the JANTXV1N969D-1/TR Zener diode from Microchip Technology is a critical component in the Discrete Semiconductor Products category. This single Zener diode is designed to deliver unmatched voltage regulation, with features such as high surge current capability and low dynamic impedance. It is particularly suited for applications in automotive electronics, where it protects ECUs and sensors from voltage surges. The JANTXV1N969D-1/TR is also widely used in industrial automation, providing stable voltage references for PLCs and motor drives. Its versatility extends to consumer electronics, where it ensures the longevity of devices like smartphones and laptops by preventing voltage overloads.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 22 V
- Tolerance: ±1%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 29 Ohms
- Current - Reverse Leakage @ Vr: 500 nA @ 17 V
- Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 200 mA
- Operating Temperature: -65°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: DO-204AH, DO-35, Axial
- Supplier Device Package: DO-35 (DO-204AH)
Related Products
Solid State Inc.
1N3025B
Nexperia USA Inc.
BZX384-B16,115
Vishay General Semiconductor - Diodes Division
BZG05B4V3-HM3-08
Microchip Technology
1N821A/TR
Renesas Electronics America Inc
HZ22BPTN-E
Taiwan Semiconductor Corporation

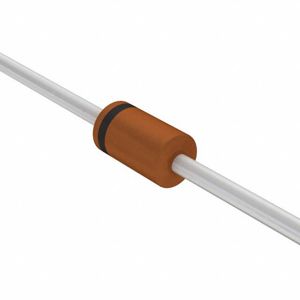

MTZJ24SC R0G
Vishay General Semiconductor - Diodes Division
GDZ3V3B-HG3-08
Rohm Semiconductor

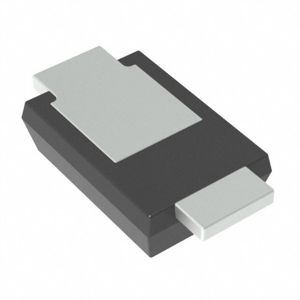

TFZVTR8.2B
Vishay General Semiconductor - Diodes Division
BZX384C68-HE3-18

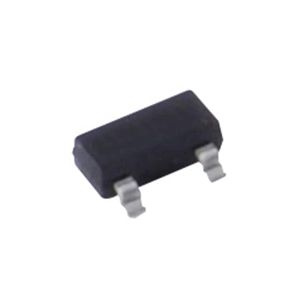

NTE Electronics, Inc
