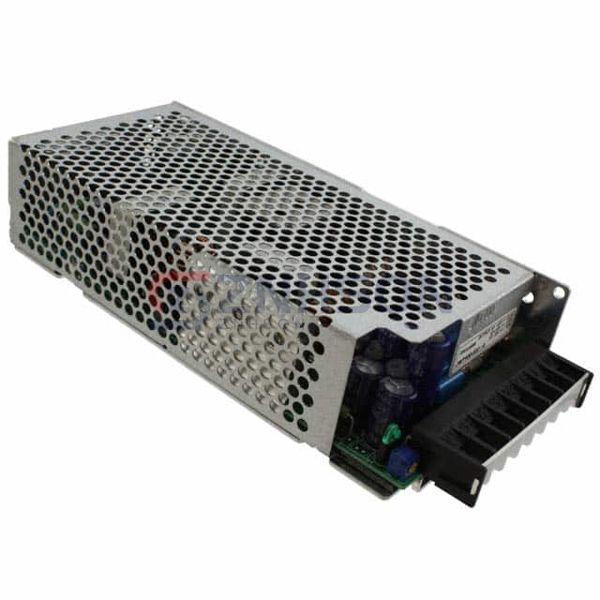

JWT100-522/A

Specifications

• Product Status: Not For New Designs
• Type: Enclosed
• Number of Outputs: 3
• Voltage - Input: 85 ~ 265 VAC
• Voltage - Output 1: 5V
• Voltage - Output 2: 12V
• Voltage - Output 3: -12V
• Voltage - Output 4: -
• Voltage - Output 5: -
• Voltage - Output 6: -
• Current - Output 1: 13 A
• Current - Output 2: 5.5 A
• Current - Output 3: 1 A
• Current - Output 4: -
• Current - Output 5: -
• Current - Output 6: -
• Power (Watts): 100W
• Applications: ITE (Commercial)
• Voltage - Isolation: 3 kV
• Efficiency: 72%
• Operating Temperature: -10°C ~ 65°C (With Derating)
• Features: Adjustable Output, DC Input Capable, PFC, Universal Input
• Mounting Type: Chassis Mount
• Size / Dimension: 7.99" L x 3.62" W x 1.89" H (202.9mm x 91.9mm x 48.0mm)
• Approval Agency: CE
• Standard Number: -
