KA1-MV10305M2
Harwin Inc.
Harwin Inc.

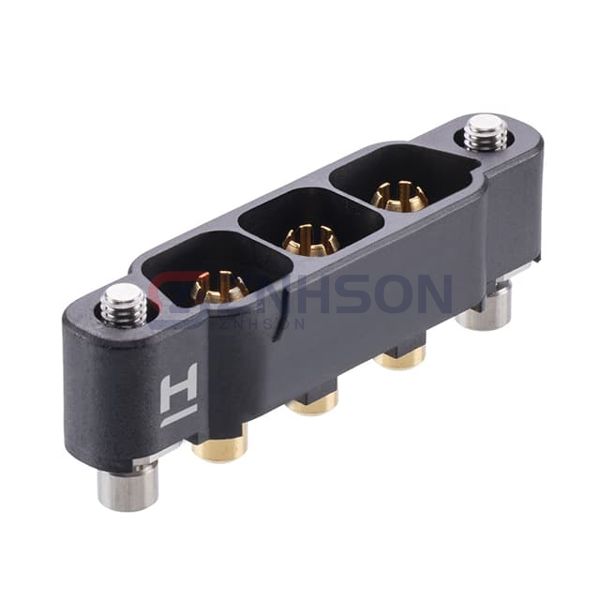

CONN HDR 8.5MM VERT PCB 3POS
$43.41
Available to order
Reference Price (USD)
1+
$43.41000
500+
$42.9759
1000+
$42.5418
1500+
$42.1077
2000+
$41.6736
2500+
$41.2395
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The KA1-MV10305M2 by Harwin Inc. is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Harwin Inc. delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin, Power
- Pitch - Mating: 0.335" (8.50mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Threaded
- Contact Length - Mating: -
- Contact Length - Post: 0.177" (4.50mm)
- Overall Contact Length: -
- Insulation Height: 0.374" (9.50mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Gold
- Contact Material: Beryllium Copper
- Insulation Material: Polyphenylene Sulfide (PPS)
- Features: Mating Flange, Mounting Flange
- Operating Temperature: -65°C ~ 150°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 60A per Contact
- Voltage Rating: -
