L6386
STMicroelectronics
STMicroelectronics

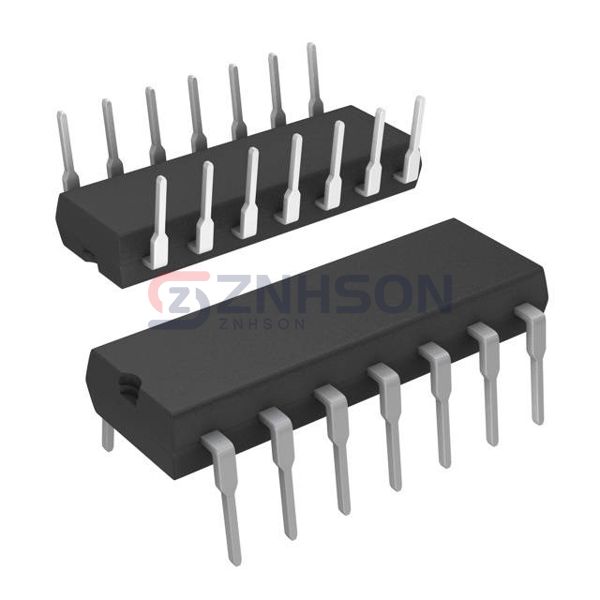

IC GATE DRVR HALF-BRIDGE 14DIP
$0.00
Available to order
Reference Price (USD)
1,000+
$2.24000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
STMicroelectronics's L6386 establishes new standards for automotive PMIC - Gate Driver ICs with ASIL-D functional safety certification. This IC classification incorporates: 1) Redundant fault detection circuits, 2) On-chip LDO for auxiliary power, and 3) ISO 26262-compliant failure modes. Automotive applications range from 48V mild-hybrid BSG systems to steer-by-wire and brake-by-wire architectures. Benchmark tests show the L6386 reducing ECU wake-up time by 200ms in Volkswagen's MEB platform, while preventing latch-up during load-dump transients up to 45V. The driver also enables <1 A standby current for always-on ADAS modules.
Specifications
- Product Status: Obsolete
- Driven Configuration: Half-Bridge
- Channel Type: Independent
- Number of Drivers: 2
- Gate Type: IGBT, N-Channel MOSFET
- Voltage - Supply: 17V (Max)
- Logic Voltage - VIL, VIH: 1.5V, 3.6V
- Current - Peak Output (Source, Sink): 400mA, 650mA
- Input Type: Inverting
- High Side Voltage - Max (Bootstrap): 600 V
- Rise / Fall Time (Typ): 50ns, 30ns
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: 14-DIP (0.300", 7.62mm)
- Supplier Device Package: 14-DIP
