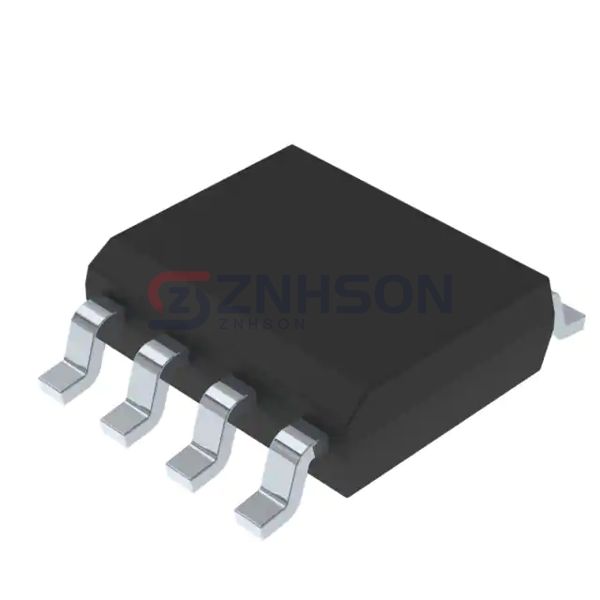

L6389EDTR
STMicroelectronics
STMicroelectronics
IC GATE DRVR HALF-BRIDGE HI/LO
$0.93
Available to order
Reference Price (USD)
2,500+
$0.63441
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
STMicroelectronics's L6389EDTR represents the cutting edge of PMIC - Gate Driver technology, engineered to deliver unmatched switching performance for power electronics. This IC classification specializes in synchronous rectification and half-bridge configurations with integrated bootstrap diodes. Notable characteristics comprise UVLO protection, programmable turn-on/off thresholds, and 4A peak output current capacity. Primary applications span data center power supplies, welding equipment, and DC-DC converters. A concrete example: the L6389EDTR enables 98% efficiency in 1kW telecom power modules while withstanding 100V/ns common-mode transients. The device's reinforced isolation meets IEC 61800-5-1 standards, particularly valuable for medical imaging systems and railway traction converters.
Specifications
- Product Status: Active
- Driven Configuration: Half-Bridge
- Channel Type: Independent
- Number of Drivers: 2
- Gate Type: IGBT, N-Channel, P-Channel MOSFET
- Voltage - Supply: 17V (Max)
- Logic Voltage - VIL, VIH: 1.1V, 1.8V
- Current - Peak Output (Source, Sink): 400mA, 650mA
- Input Type: Inverting
- High Side Voltage - Max (Bootstrap): 600 V
- Rise / Fall Time (Typ): 70ns, 40ns
- Operating Temperature: -45°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 8-SOIC
