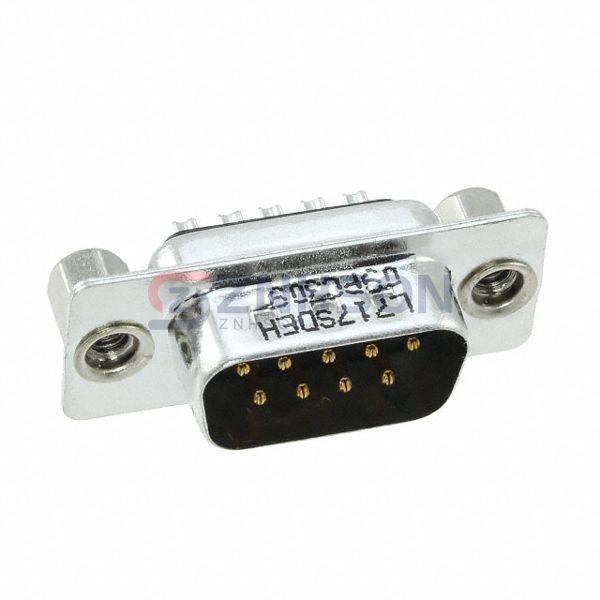

L717SDEH09PC309
Amphenol ICC (Commercial Products)
Amphenol ICC (Commercial Products)
CONN D-SUB PLUG 9POS SLDR CUP
$1.54
Available to order
Reference Price (USD)
1+
$1.31000
10+
$1.19100
25+
$1.11800
90+
$1.06922
180+
$1.02061
270+
$0.92341
540+
$0.85050
1,080+
$0.72900
2,520+
$0.70200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Amphenol ICC (Commercial Products) presents the L717SDEH09PC309 D-Sub connector family - premium interconnect components for professional electronics. Characterized by their distinctive D-shaped metal shield, these connectors offer 5A current rating and 1000V dielectric strength. Our Connectors catalog highlights their mixed-contact capability (combining power and signal contacts) and solder cup/PCB termination options. The L717SDEH09PC309 is particularly effective in test & measurement instruments, broadcast equipment, and industrial control panels. Specific implementations include oscilloscope interfaces, PLC connections, and CNC machine wiring where consistent signal integrity is paramount.
Specifications
- Product Status: Active
- Connector Style: D-Sub
- Connector Type: Plug, Male Pins
- Number of Positions: 9
- Number of Rows: 2
- Mounting Type: Free Hanging (In-Line)
- Shell Size, Connector Layout: 1 (DE, E)
- Contact Type: Signal
- Flange Feature: Cable Side (4-40)
- Termination: Solder Cup
- Primary Material: -
- Shell Material, Finish: Steel, Tin Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 3A
- Backset Spacing: -
- Features: Grounding Indents
Related Products
EDAC Inc.
627-M09-320-WN4
Positronic
DD15M10Z0Z/AA
EDAC Inc.
627-7W2-624-4N2
EDAC Inc.
629-27W2640-7ND
Cinch Connectivity Solutions
DCCM37PCBRPN
EDAC Inc.
627-2WK2224-1TB
EDAC Inc.
630-43W2250-4N6
EDAC Inc.
629-5W1-640-3T3

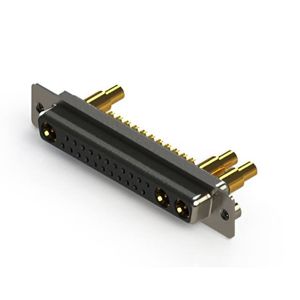

EDAC Inc.
