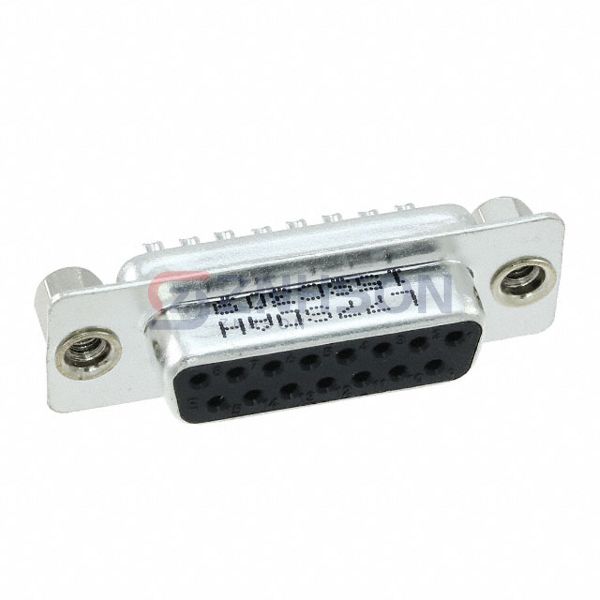

L77SDAH15SC309
Amphenol ICC (Commercial Products)
Amphenol ICC (Commercial Products)
CONN D-SUB RCPT 15POS SLDR CUP
$2.20
Available to order
Reference Price (USD)
1+
$1.90000
10+
$1.72000
25+
$1.61480
70+
$1.54443
140+
$1.47421
280+
$1.33379
560+
$1.22850
1,050+
$1.05300
2,520+
$1.01400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Amphenol ICC (Commercial Products) presents the L77SDAH15SC309 D-Sub connector family - premium interconnect components for professional electronics. Characterized by their distinctive D-shaped metal shield, these connectors offer 5A current rating and 1000V dielectric strength. Our Connectors catalog highlights their mixed-contact capability (combining power and signal contacts) and solder cup/PCB termination options. The L77SDAH15SC309 is particularly effective in test & measurement instruments, broadcast equipment, and industrial control panels. Specific implementations include oscilloscope interfaces, PLC connections, and CNC machine wiring where consistent signal integrity is paramount.
Specifications
- Product Status: Active
- Connector Style: D-Sub
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 15
- Number of Rows: 2
- Mounting Type: Free Hanging (In-Line)
- Shell Size, Connector Layout: 2 (DA, A)
- Contact Type: Signal
- Flange Feature: Cable Side (4-40)
- Termination: Solder Cup
- Primary Material: -
- Shell Material, Finish: Steel, Tin Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 3A
- Backset Spacing: -
- Features: -
