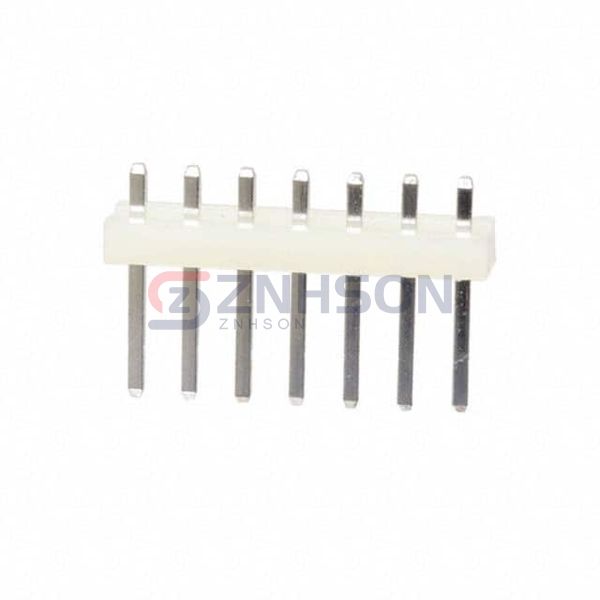

LHB-07-SA2
Adam Tech
Adam Tech
CONN HEADER VERT 7POS 3.96MM
$0.52
Available to order
Reference Price (USD)
1+
$0.49000
10+
$0.46200
100+
$0.35420
500+
$0.30800
1,000+
$0.25410
5,000+
$0.22330
10,000+
$0.20790
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the LHB-07-SA2 rectangular connector header from Adam Tech. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the LHB-07-SA2 is perfect for automotive, industrial, and consumer electronics. Adam Tech ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 7
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.413" (10.50mm)
- Contact Length - Post: 0.150" (3.81mm)
- Overall Contact Length: 0.689" (17.50mm)
- Insulation Height: 0.126" (3.20mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: -
- Operating Temperature: -25°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-2
- Insulation Color: White
- Current Rating (Amps): 7A
- Voltage Rating: 250VAC
