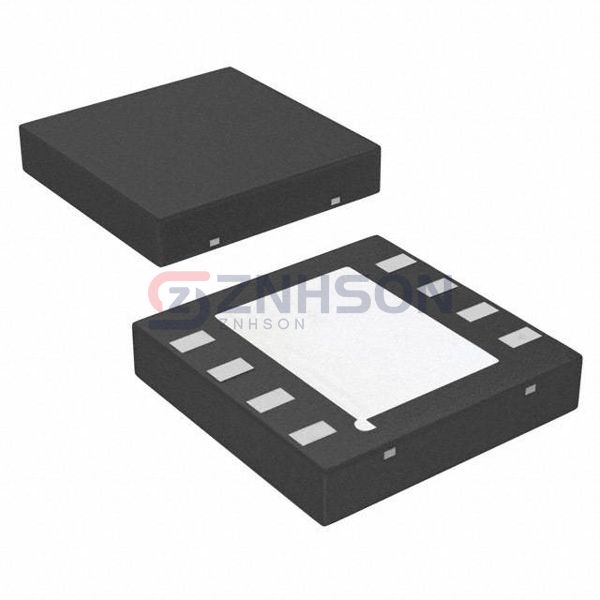

LM2940LD-12

Texas Instruments

Manufacturer

Texas Instruments

Description:

IC REG LINEAR 12V 1A 8WSON

Datasheet:

LM2940LD-12 Datasheet

$1.53

Available to order

Reference Price (USD)

1,000+

$1.23975

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The LM2940LD-12 by Texas Instruments is a high-efficiency PMIC - Voltage Regulators - Linear IC designed to meet the needs of today's advanced electronic systems. This IC offers superior voltage regulation with features like fast transient response, low noise, and high accuracy. Its robust construction ensures long-term reliability, making it a perfect fit for both commercial and industrial applications. In the PMIC - Voltage Regulators - Linear category, the LM2940LD-12 stands out for its ability to handle varying load conditions without compromising performance. It provides excellent line regulation and low quiescent current, which are essential for energy-efficient designs. Additionally, its built-in protection mechanisms safeguard against over-voltage and short-circuit conditions. The LM2940LD-12 is employed in diverse fields, including medical imaging, consumer electronics, and military equipment. For instance, it is used in MRI machines, high-end audio systems, and defense communication devices. Its versatility and dependable performance make it a cornerstone in modern electronic engineering.

Specifications

Product Status: Not For New Designs
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 26V
Voltage - Output (Min/Fixed): 12V
Voltage - Output (Max): -
Voltage Dropout (Max): 1V @ 1A
Current - Output: 1A
Current - Quiescent (Iq): 10 mA
Current - Supply (Max): 15 mA
PSRR: 66dB (120Hz)
Control Features: -
Protection Features: Over Current, Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: 8-WDFN Exposed Pad
Supplier Device Package: 8-WSON (4x4)
