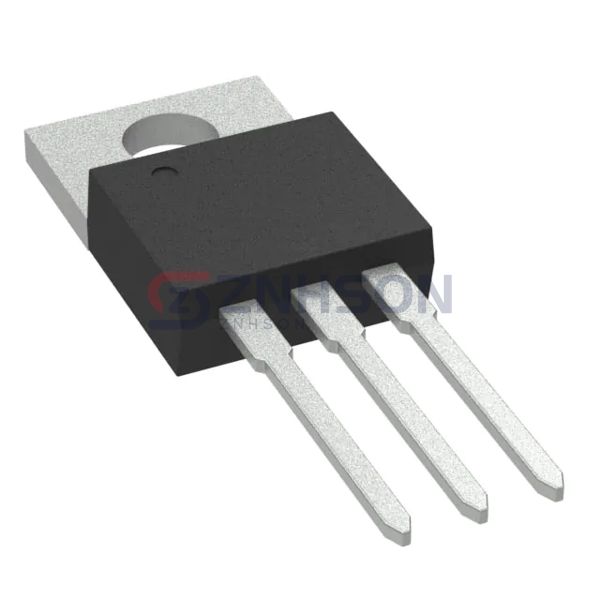

LM2940T-5.0

Texas Instruments

Manufacturer

Texas Instruments

Description:

IC REG LINEAR 5V 1A TO220-3

Datasheet:

LM2940T-5.0 Datasheet

$2.70

Available to order

Reference Price (USD)

$2.18000

10+

$1.95800

45+

$1.84756

135+

$1.57407

540+

$1.29326

1,035+

$1.07155

2,520+

$0.99765

5,040+

$0.96070

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The LM2940T-5.0 from Texas Instruments is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.

Specifications

Product Status: Not For New Designs
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 26V
Voltage - Output (Min/Fixed): 5V
Voltage - Output (Max): -
Voltage Dropout (Max): 1V @ 1A
Current - Output: 1A
Current - Quiescent (Iq): 10 mA
Current - Supply (Max): 15 mA
PSRR: 64dB (120Hz)
Control Features: -
Protection Features: Over Current, Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature: -40°C ~ 125°C
Mounting Type: Through Hole
Package / Case: TO-220-3
Supplier Device Package: TO-220-3
