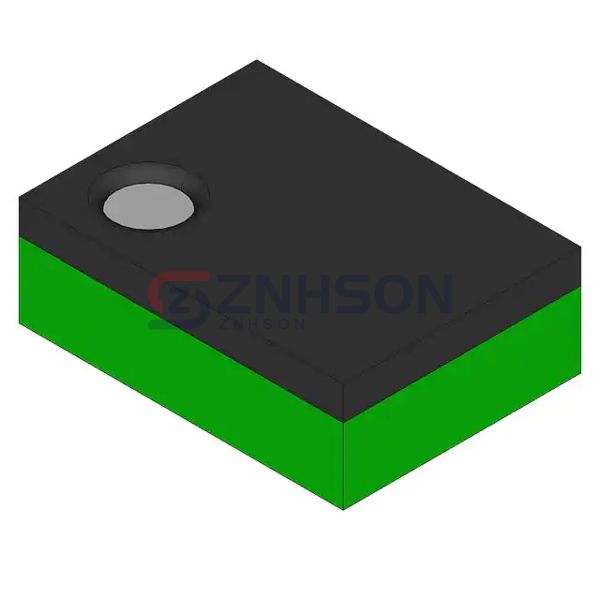

LM3691TL-1.2/NOPB
National Semiconductor
National Semiconductor
LM3691 HIGH ACCURACY, MINIATURE
$1.01
Available to order
Reference Price (USD)
1+
$1.01000
500+
$0.9999
1000+
$0.9898
1500+
$0.9797
2000+
$0.9696
2500+
$0.9595
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The LM3691TL-1.2/NOPB by National Semiconductor sets new standards in the PMIC - Voltage Regulators - DC DC Switching Regulators segment. This IC is specifically designed for portable medical devices, offering ultra-low noise and high efficiency for sensitive applications like patient monitoring and diagnostic equipment. Its small footprint and low power consumption make it ideal for battery-operated medical tools. With comprehensive protection features and medical-grade reliability, the LM3691TL-1.2/NOPB ensures safe operation in healthcare settings. Partner with National Semiconductor for life-critical power management solutions.
Specifications
- Product Status: Active
- Function: Step-Down
- Output Configuration: Positive
- Topology: Buck
- Output Type: Fixed
- Number of Outputs: 1
- Voltage - Input (Min): 2.3V
- Voltage - Input (Max): 5.5V
- Voltage - Output (Min/Fixed): 1.2V
- Voltage - Output (Max): -
- Current - Output: 1A
- Frequency - Switching: 4MHz
- Synchronous Rectifier: Yes
- Operating Temperature: -30°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 6-WFBGA, DSBGA
- Supplier Device Package: 6-DSBGA (1.5x1.3)
