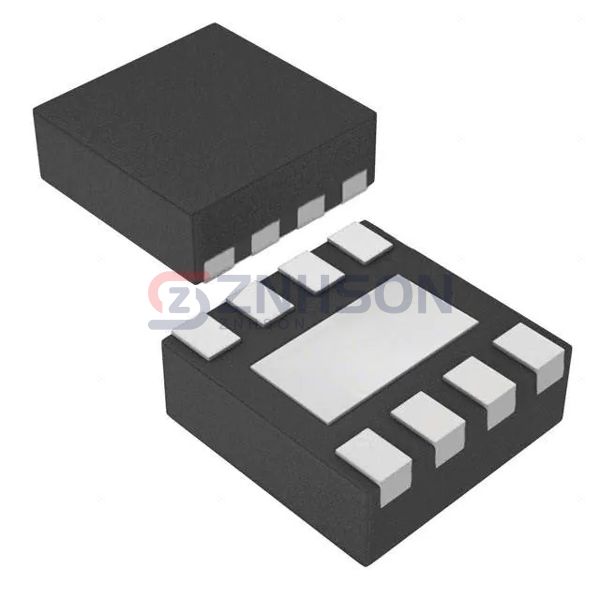

LM5101ASD-1/NOPB
Texas Instruments
Texas Instruments
IC GATE DRVR HALF-BRIDGE 8WSON
$4.45
Available to order
Reference Price (USD)
1,000+
$1.47840
2,000+
$1.40448
5,000+
$1.35168
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Texas Instruments's LM5101ASD-1/NOPB establishes new standards for automotive PMIC - Gate Driver ICs with ASIL-D functional safety certification. This IC classification incorporates: 1) Redundant fault detection circuits, 2) On-chip LDO for auxiliary power, and 3) ISO 26262-compliant failure modes. Automotive applications range from 48V mild-hybrid BSG systems to steer-by-wire and brake-by-wire architectures. Benchmark tests show the LM5101ASD-1/NOPB reducing ECU wake-up time by 200ms in Volkswagen's MEB platform, while preventing latch-up during load-dump transients up to 45V. The driver also enables <1 A standby current for always-on ADAS modules.
Specifications
- Product Status: Active
- Driven Configuration: Half-Bridge
- Channel Type: Independent
- Number of Drivers: 2
- Gate Type: N-Channel MOSFET
- Voltage - Supply: 9V ~ 14V
- Logic Voltage - VIL, VIH: 2.3V, -
- Current - Peak Output (Source, Sink): 3A, 3A
- Input Type: Non-Inverting
- High Side Voltage - Max (Bootstrap): 118 V
- Rise / Fall Time (Typ): 430ns, 260ns
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 8-WDFN Exposed Pad
- Supplier Device Package: 8-WSON (4x4)
