LM5113SD/NOPB
Texas Instruments
Texas Instruments

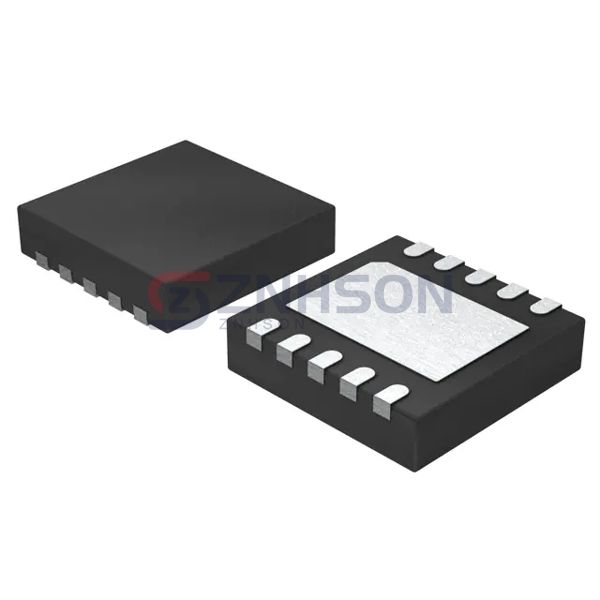

IC GATE DRVR HALF-BRIDGE 10WSON
$6.36
Available to order
Reference Price (USD)
1+
$6.36000
500+
$6.2964
1000+
$6.2328
1500+
$6.1692
2000+
$6.1056
2500+
$6.042
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The LM5113SD/NOPB PMIC - Gate Driver by Texas Instruments sets new benchmarks for intelligent power device control. As part of the ICs family, this solution incorporates digital input interfaces (PWM, SPI) alongside analog fault monitoring pins. Its standout attributes are: 1) 12ns typical propagation delay matching, 2) -40 C to +150 C junction temperature range, and 3) configurable soft-turnoff during overcurrent events. Dominant market applications encompass 5G base station PAs, MRI gradient amplifiers, and hydrogen fuel cell converters. A case in point: Siemens' latest wind turbine converters leverage LM5113SD/NOPB-equivalent drivers to achieve 99.2% availability in offshore conditions, thanks to conformal coating against salt spray corrosion.
Specifications
- Product Status: Not For New Designs
- Driven Configuration: Half-Bridge
- Channel Type: Independent
- Number of Drivers: 2
- Gate Type: N-Channel MOSFET
- Voltage - Supply: 4.5V ~ 5.5V
- Logic Voltage - VIL, VIH: 1.76V, 1.89V
- Current - Peak Output (Source, Sink): 1.2A, 5A
- Input Type: Non-Inverting
- High Side Voltage - Max (Bootstrap): 107 V
- Rise / Fall Time (Typ): 7ns, 1.5ns
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 10-WDFN Exposed Pad
- Supplier Device Package: 10-WSON (4x4)
