LP38501TSX-ADJ/NOPB
Texas Instruments
Texas Instruments
IC REG LIN POS ADJ 3A DDPAK
$2.75
Available to order
Reference Price (USD)
1+
$2.75000
500+
$2.7225
1000+
$2.695
1500+
$2.6675
2000+
$2.64
2500+
$2.6125
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The LP38501TSX-ADJ/NOPB from Texas Instruments is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.
Specifications
- Product Status: Active
- Output Configuration: Positive
- Output Type: Adjustable
- Number of Regulators: 1
- Voltage - Input (Max): 5.5V
- Voltage - Output (Min/Fixed): 0.6V
- Voltage - Output (Max): 5V
- Voltage Dropout (Max): 0.67V @ 3A
- Current - Output: 3A
- Current - Quiescent (Iq): 15 µA
- Current - Supply (Max): 4 mA
- PSRR: 58dB ~ 56dB (120Hz ~ 1kHz)
- Control Features: Enable
- Protection Features: Over Current, Over Temperature, Short Circuit
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
- Supplier Device Package: DDPAK/TO-263-5
Related Products
Infineon Technologies
TLE4284DV26ATMA1
ABLIC Inc.
S-1165B36MC-N6VTFG
ABLIC Inc.
S-1135C24-M5T1U
Nisshinbo Micro Devices Inc.

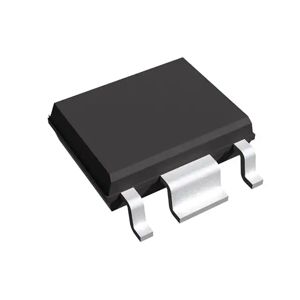

R1513S501B-E2-KE
Microchip Technology

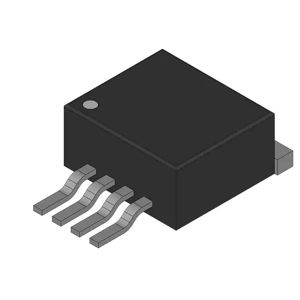

MIC29151-3.3BU
