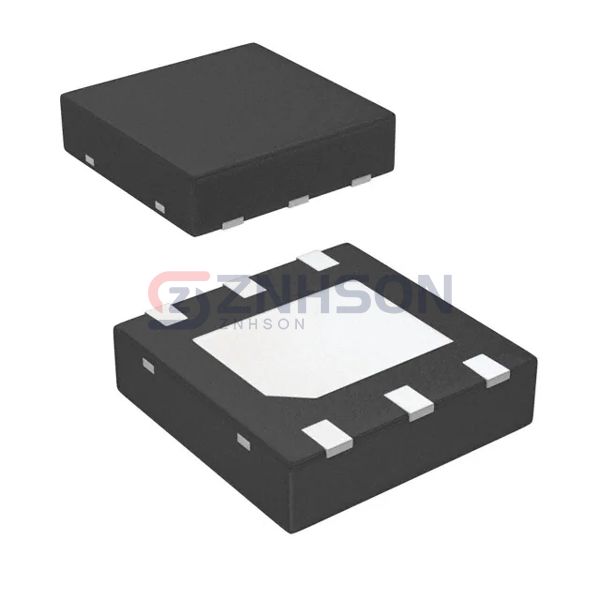

LP38691SDX-3.3
Texas Instruments
Texas Instruments
IC REG LINEAR 3.3V 500MA 6WSON
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Texas Instruments's LP38691SDX-3.3 represents the cutting edge in linear voltage regulator technology within our Integrated Circuits (ICs) inventory. This PMIC component delivers fixed or adjustable output voltages with outstanding line and load regulation performance. The device incorporates advanced protection features including over-temperature and short-circuit protection, making it exceptionally reliable for critical applications. Linear voltage regulators like the LP38691SDX-3.3 are fundamental in automotive electronics (for infotainment systems and ECUs), industrial control systems, and telecommunications infrastructure where voltage stability is paramount. Engineers particularly value these ICs for their simplicity of design and minimal external component requirements.
Specifications
- Product Status: Obsolete
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 10V
- Voltage - Output (Min/Fixed): 3.3V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.55V @ 500mA
- Current - Output: 500mA
- Current - Quiescent (Iq): 55 µA
- Current - Supply (Max): 100 µA
- PSRR: 55dB (120Hz)
- Control Features: -
- Protection Features: Over Temperature
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 6-WDFN Exposed Pad
- Supplier Device Package: 6-WSON (3x3)
Related Products
Texas Instruments
LP3988ITL-2.6/NOPB-TI
Microchip Technology
MIC5365-1.3YMT TR
Microchip Technology
MIC2920A-12BS TR
STMicroelectronics
LD39300PT-R
MaxLinear, Inc.
SP6260BEK-L/TR
Texas Instruments
TPS7150QPWRG4
Diodes Incorporated
AZ1117EH-5.0TRG1
Richtek USA Inc.

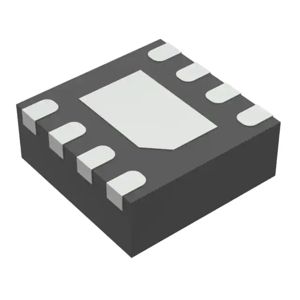

RT9011-SSGQW
STMicroelectronics

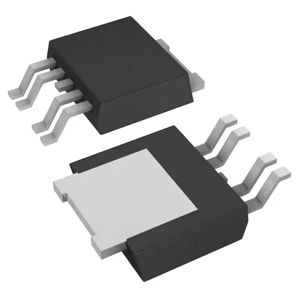

LF80ABPT
