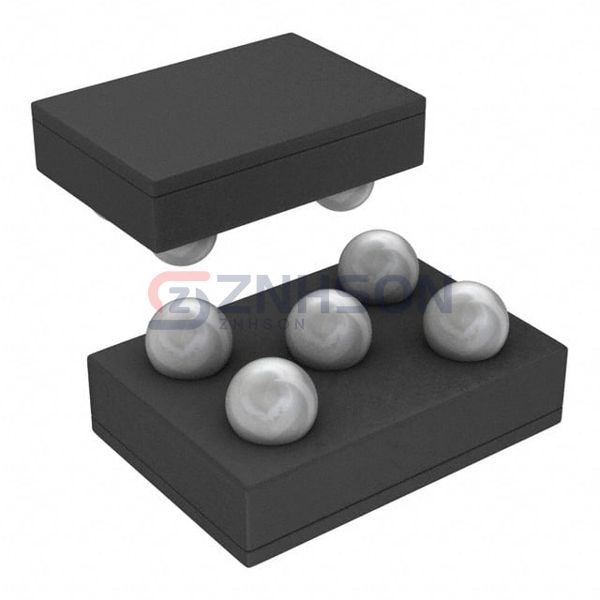

LP5952TL-1.0/NOPB

Texas Instruments

Manufacturer

Texas Instruments

Description:

IC REG LINEAR 1V 350MA 5DSBGA

Datasheet:

LP5952TL-1.0/NOPB Datasheet

$0.42

Available to order

Reference Price (USD)

$0.42240

500+

$0.418176

1000+

$0.413952

1500+

$0.409728

2000+

$0.405504

2500+

$0.40128

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The LP5952TL-1.0/NOPB from Texas Instruments is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 4.5V
Voltage - Output (Min/Fixed): 1V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.2V @ 350mA
Current - Output: 350mA
Current - Quiescent (Iq): 28 µA
Current - Supply (Max): 100 µA
PSRR: 80dB ~ 64dB (10Hz ~ 100kHz)
Control Features: Enable
Protection Features: Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount
Package / Case: 5-WFBGA, DSBGA
Supplier Device Package: 5-DSBGA (1.41x1.08)
