LP5996SD-3030
Texas Instruments
Texas Instruments
IC REG LIN 3V 150MA/300MA 10SON
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the LP5996SD-3030, a premium PMIC - Voltage Regulators - Linear IC from Texas Instruments, engineered to provide exceptional voltage regulation with minimal power loss. This IC is part of the esteemed PMIC - Voltage Regulators - Linear category, known for its ability to maintain stable voltage levels under varying load conditions. The LP5996SD-3030 excels with its low quiescent current, high efficiency, and superior thermal management, ensuring optimal performance in demanding environments.
Linear voltage regulators like the LP5996SD-3030 are pivotal in applications requiring precise voltage control without the complexity of switching regulators. The LP5996SD-3030 offers outstanding line and load regulation, making it a preferred choice for sensitive electronic circuits. Its advanced protection features, including over-current and over-temperature safeguards, further enhance its reliability.
The LP5996SD-3030 finds applications across multiple sectors, including medical devices, industrial automation, and consumer electronics. For example, it is used in wearable health monitors, factory automation systems, and smart home devices. Its ability to deliver clean and stable power makes it indispensable for modern electronic designs, ensuring both performance and safety.
Specifications
- Product Status: Obsolete
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 2
- Voltage - Input (Max): 6V
- Voltage - Output (Min/Fixed): 3V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.22V @ 150mA, 0.55V @ 300mA
- Current - Output: 150mA, 300mA
- Current - Quiescent (Iq): 110 µA
- Current - Supply (Max): 170 µA
- PSRR: 58dB ~ 45dB, 70dB ~ 60dB (1kHz ~ 20kHz)
- Control Features: Enable
- Protection Features: Over Temperature, Short Circuit
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: 10-WFDFN Exposed Pad
- Supplier Device Package: 10-SON (3x3)
Related Products
Renesas Electronics America Inc
ISL80101IR50Z-TK
Texas Instruments
LP2980AIM5X-2.9/NOPB
Texas Instruments
TPS76333DBVTG4
Nisshinbo Micro Devices Inc.
NJU7201L12
ABLIC Inc.
S-1170B33PD-OTSTFG
Microchip Technology
MIC2937A-3.3BU TR
STMicroelectronics
L79L08ACD

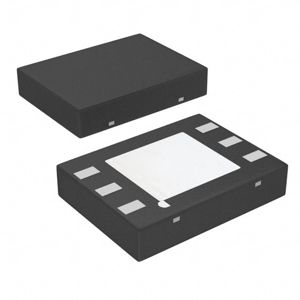

Texas Instruments
LP2992AILDX-1.8/NOPB

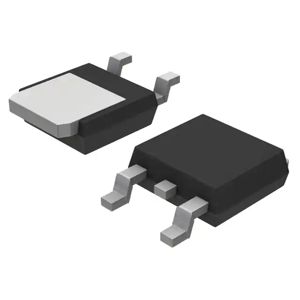

onsemi
