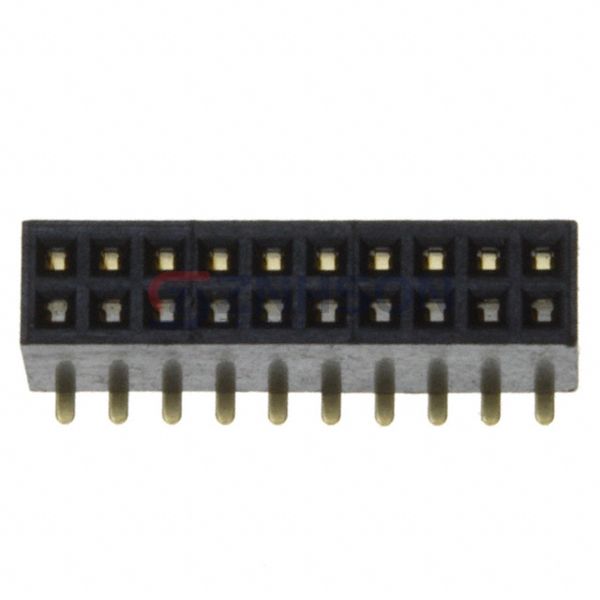

LPPB102NFSP-RC
Sullins Connector Solutions
Sullins Connector Solutions
CONN HDR 20POS 0.05 GOLD SMD
$2.31
Available to order
Reference Price (USD)
1+
$2.31000
10+
$2.22000
100+
$1.85040
500+
$1.57284
1,000+
$1.34154
5,000+
$1.33640
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The LPPB102NFSP-RC Sullins Connector Solutions Rectangular Connectors - Headers, Receptacles, and Female Sockets offer superior connectivity solutions for modern electronics. Designed with versatility in mind, these connectors support high-speed data transfer and power delivery. Their compact design and rugged build make them suitable for aerospace, military, and IoT applications. Whether you need board-to-board, cable-to-board, or wire-to-wire connections, Sullins Connector Solutions provides reliable options. Examples include avionics systems, defense equipment, and smart home devices.
Specifications
- Product Status: Active
- Connector Type: Header, Top or Bottom Entry
- Contact Type: Female Socket
- Style: Board to Board
- Number of Positions: 20
- Number of Positions Loaded: All
- Pitch - Mating: 0.050" (1.27mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Insulation Color: Black
- Insulation Height: 0.183" (4.65mm)
- Contact Length - Post: -
- Operating Temperature: -40°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Gold
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: Board Guide
- Current Rating (Amps): 1A
- Voltage Rating: -
