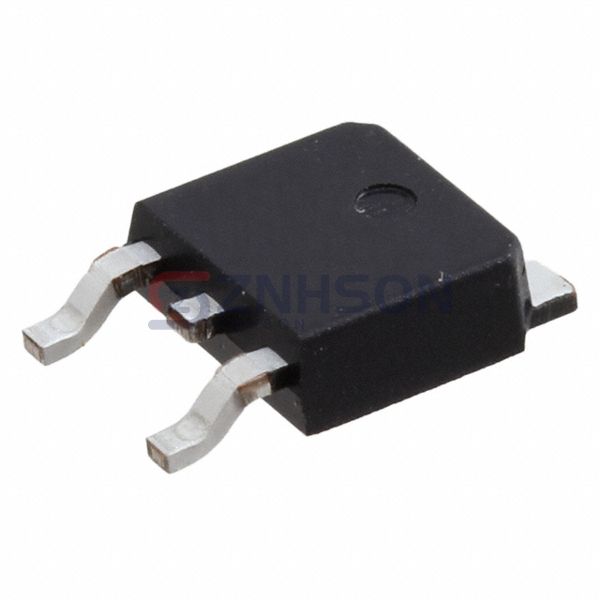

LQA10N200C
Power Integrations
Power Integrations
DIODE ARRAY GP 200V 5A TO252
$1.27
Available to order
Reference Price (USD)
2,500+
$0.49490
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the LQA10N200C by Power Integrations represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With Power Integrations's patented junction design, the LQA10N200C achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 200 V
- Current - Average Rectified (Io) (per Diode): 5A
- Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 5 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 13.9 ns
- Current - Reverse Leakage @ Vr: 250 µA @ 200 V
- Operating Temperature - Junction: -55°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
- Supplier Device Package: TO-252 (D-Pak)
Related Products
Linear Integrated Systems, Inc.
DPAD100 TO-72 4L
onsemi
SBAS21DW5T1G
onsemi
MUR1640CTG
SMC Diode Solutions
MBR20100CTP
NTE Electronics, Inc

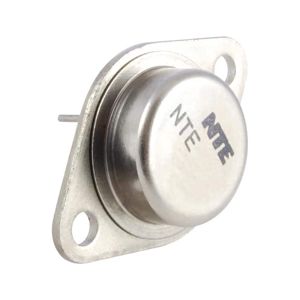

NTE6200
SMC Diode Solutions
SBR10200CT
Vishay General Semiconductor - Diodes Division
VS-HFA08TB120SR-M3
Diodes Incorporated
MMBD4148TW-7-F
SMC Diode Solutions

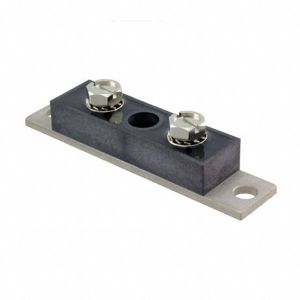

201CNQ035
