LT1158ISW#PBF
Analog Devices Inc.
Analog Devices Inc.

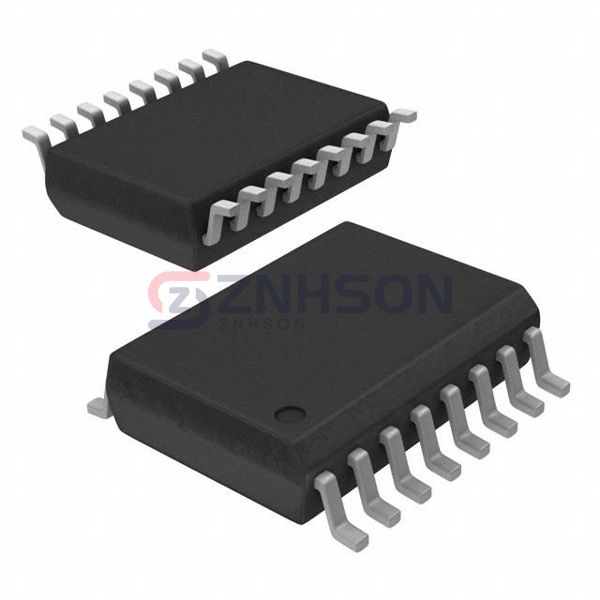

IC GATE DRVR HALF-BRIDGE 16SOIC
$11.45
Available to order
Reference Price (USD)
1+
$9.95000
25+
$6.60360
100+
$5.46000
250+
$5.18700
500+
$5.07000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The LT1158ISW#PBF from Analog Devices Inc. redefines compact power management as a space-optimized PMIC - Gate Driver IC. Measuring just 3x3mm QFN, this classification achieves 5kV reinforced isolation through innovative transformer coupling technology. Signature features are: 1) 50% lower quiescent current than industry average, 2) 3.3V/5V logic level translation, and 3) Lead-free/RoHS 3.0 compliance. Consumer electronics particularly benefit in wireless charging pads (Qi 1.3 standard), drone ESC modules, and VR headset power circuits. Real-world testing demonstrates the LT1158ISW#PBF enabling 95W USB-PD adapters at 30W/in power density - a key enabler for Apple's MagSafe ecosystem.
Specifications
- Product Status: Active
- Driven Configuration: Half-Bridge
- Channel Type: Synchronous
- Number of Drivers: 2
- Gate Type: N-Channel MOSFET
- Voltage - Supply: 5V ~ 30V
- Logic Voltage - VIL, VIH: 0.8V, 2V
- Current - Peak Output (Source, Sink): 500mA, 500mA
- Input Type: Inverting, Non-Inverting
- High Side Voltage - Max (Bootstrap): 56 V
- Rise / Fall Time (Typ): 130ns, 120ns
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 16-SO
