LT1336CN#PBF
Analog Devices Inc.
Analog Devices Inc.

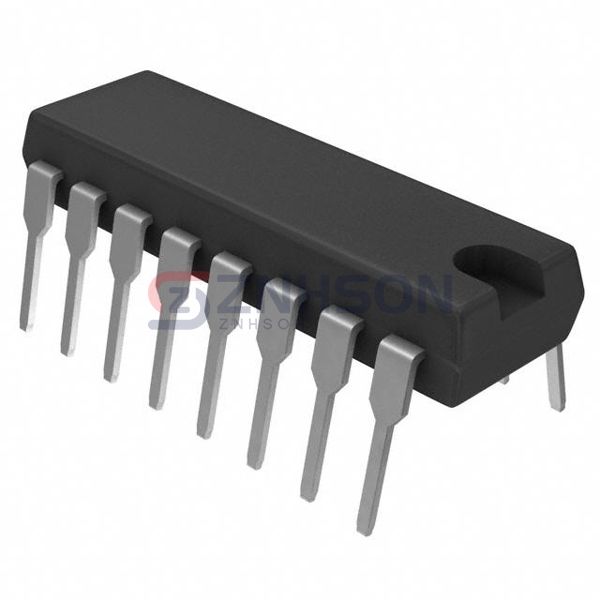

IC GATE DRVR HALF-BRIDGE 16DIP
$8.27
Available to order
Reference Price (USD)
1+
$7.27000
25+
$4.82560
100+
$3.99000
250+
$3.79052
500+
$3.70500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Analog Devices Inc.'s LT1336CN#PBF represents the cutting edge of PMIC - Gate Driver technology, engineered to deliver unmatched switching performance for power electronics. This IC classification specializes in synchronous rectification and half-bridge configurations with integrated bootstrap diodes. Notable characteristics comprise UVLO protection, programmable turn-on/off thresholds, and 4A peak output current capacity. Primary applications span data center power supplies, welding equipment, and DC-DC converters. A concrete example: the LT1336CN#PBF enables 98% efficiency in 1kW telecom power modules while withstanding 100V/ns common-mode transients. The device's reinforced isolation meets IEC 61800-5-1 standards, particularly valuable for medical imaging systems and railway traction converters.
Specifications
- Product Status: Active
- Driven Configuration: Half-Bridge
- Channel Type: Independent
- Number of Drivers: 2
- Gate Type: N-Channel MOSFET
- Voltage - Supply: 10V ~ 15V
- Logic Voltage - VIL, VIH: 0.8V, 2V
- Current - Peak Output (Source, Sink): 1.5A, 1.5A
- Input Type: Non-Inverting
- High Side Voltage - Max (Bootstrap): 60 V
- Rise / Fall Time (Typ): 130ns, 60ns
- Operating Temperature: 0°C ~ 125°C (TJ)
- Mounting Type: Through Hole
- Package / Case: 16-DIP (0.300", 7.62mm)
- Supplier Device Package: 16-PDIP
