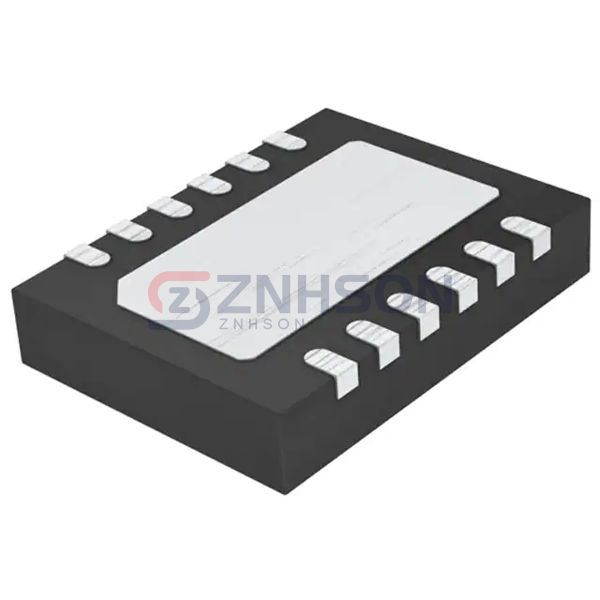

LT1763CDE-3#PBF
Analog Devices Inc.
Analog Devices Inc.
IC REG LINEAR 3V 500MA 12DFN
$6.29
Available to order
Reference Price (USD)
1+
$4.72000
25+
$3.13240
100+
$2.59000
250+
$2.46052
500+
$2.40500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The LT1763CDE-3#PBF from Analog Devices Inc. is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.
Specifications
- Product Status: Active
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 20V
- Voltage - Output (Min/Fixed): 3V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.45V @ 500mA
- Current - Output: 500mA
- Current - Quiescent (Iq): -
- Current - Supply (Max): -
- PSRR: 65dB (120Hz)
- Control Features: Enable
- Protection Features: Over Current, Over Temperature, Reverse Polarity
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 12-WFDFN Exposed Pad
- Supplier Device Package: 12-DFN (4x3)
Related Products
Analog Devices Inc./Maxim Integrated
MAX6650EUB
Microchip Technology
MIC29371-3.3WT
ABLIC Inc.
S-1315D25-M5T1U3
Nisshinbo Micro Devices Inc.
R1161N321D-TR-FE
Renesas Electronics America Inc
ISL9014AIRKFZ-T
Toshiba Semiconductor and Storage
TCR3DF105,LM(CT
Diodes Incorporated
AP7343-135W5-7
STMicroelectronics

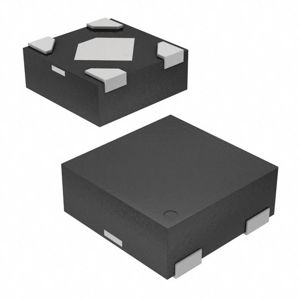

LD39020ATPU32R
