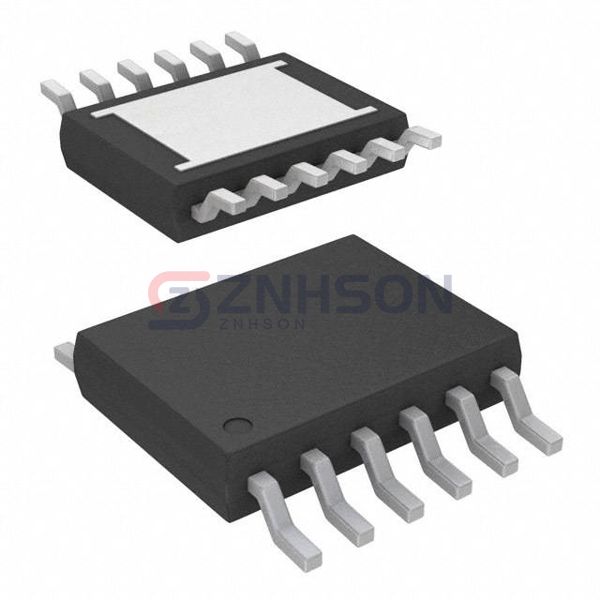

LT3066IMSE#PBF
Analog Devices Inc.
Analog Devices Inc.
IC REG LIN POS ADJ 500MA 12MSOP
$6.63
Available to order
Reference Price (USD)
1+
$5.33000
25+
$3.53880
100+
$2.92600
250+
$2.77972
500+
$2.71700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The LT3066IMSE#PBF from Analog Devices Inc. is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.
Specifications
- Product Status: Active
- Output Configuration: Positive
- Output Type: Adjustable
- Number of Regulators: 1
- Voltage - Input (Max): 45V
- Voltage - Output (Min/Fixed): 0.6V
- Voltage - Output (Max): 19V
- Voltage Dropout (Max): 0.51V @ 500mA
- Current - Output: 500mA
- Current - Quiescent (Iq): 125 µA
- Current - Supply (Max): 25 mA
- PSRR: 85dB (120Hz)
- Control Features: Current Limit, Enable, Power Good, Soft Start
- Protection Features: Over Current, Over Temperature, Reverse Polarity
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 12-TSSOP (0.118", 3.00mm Width) Exposed Pad
- Supplier Device Package: 12-MSOP-EP
Related Products
STMicroelectronics
LDL112PV10R
Analog Devices Inc.
ADP7156ARDZ-1.2-R7
Nisshinbo Micro Devices Inc.
RP110N281B-TR-FE
Texas Instruments

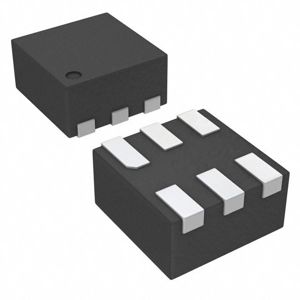

TPS71709DSER
National Semiconductor

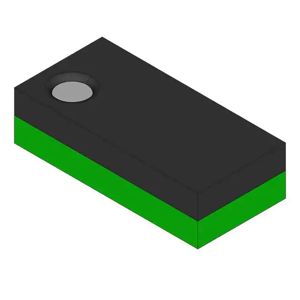

LP2967IBP-2533
Analog Devices Inc.

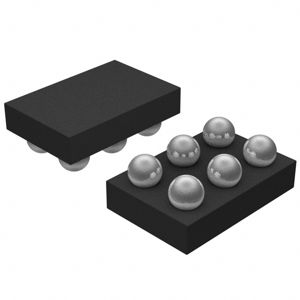

ADP7112ACBZ-1.2-R7
onsemi

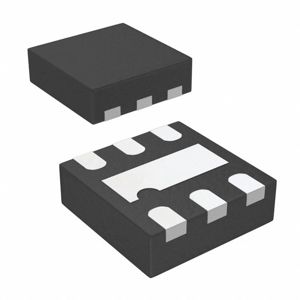

NCV8152MX180180TCG
ABLIC Inc.

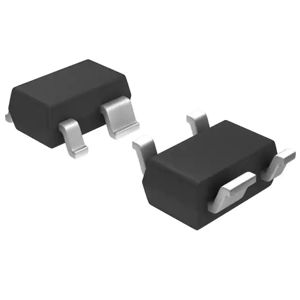

S-817A29ANB-CUST2U
Nisshinbo Micro Devices Inc.

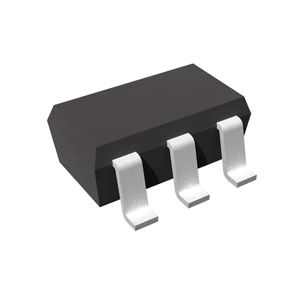

R1180N231B-TR-YE
