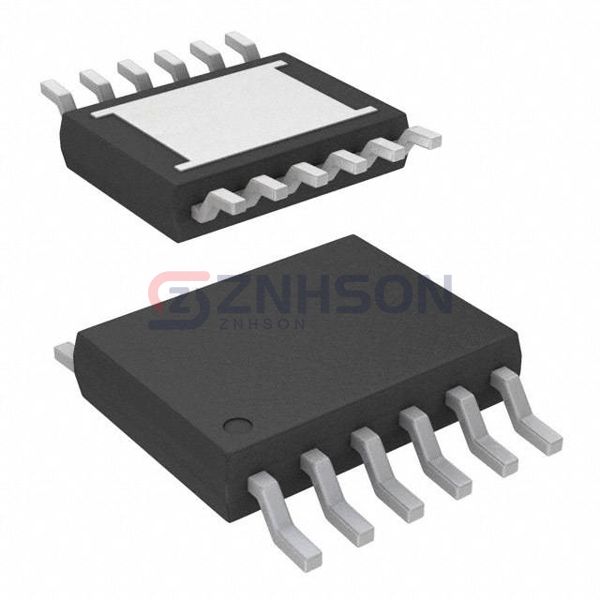

LT3090IMSE#PBF

Analog Devices Inc.

Manufacturer

Analog Devices Inc.

Description:

IC REG LIN NEG ADJ 600MA 12MSOP

Datasheet:

LT3090IMSE#PBF Datasheet

$6.76

Available to order

Reference Price (USD)

$6.07000

25+

$4.03000

100+

$3.33200

250+

$3.16540

500+

$3.09400

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Discover the LT3090IMSE#PBF linear voltage regulator IC by Analog Devices Inc., a standout product in our PMIC - Voltage Regulators - Linear category. This IC provides precise voltage regulation with ultra-low noise output, making it perfect for analog and RF circuits. The device features excellent PSRR (Power Supply Rejection Ratio) performance and comes in various package options to suit different design requirements. Linear regulators such as this LT3090IMSE#PBF model are extensively used in consumer electronics (smartphones, tablets), IoT devices, and aerospace applications where consistent voltage without switching noise is essential. Its robust design ensures reliable operation in harsh environments with wide temperature ranges.

Specifications

Product Status: Active
Output Configuration: Negative
Output Type: Adjustable
Number of Regulators: 1
Voltage - Input (Max): -36V
Voltage - Output (Min/Fixed): 0V
Voltage - Output (Max): -32V
Voltage Dropout (Max): 0.45V @ 600mA
Current - Output: 600mA
Current - Quiescent (Iq): 50.5 µA
Current - Supply (Max): -
PSRR: 85dB ~ 20dB (120Hz ~ 1MHz)
Control Features: Current Limit, Enable
Protection Features: Over Current, Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: 12-TSSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package: 12-MSOP-EP
