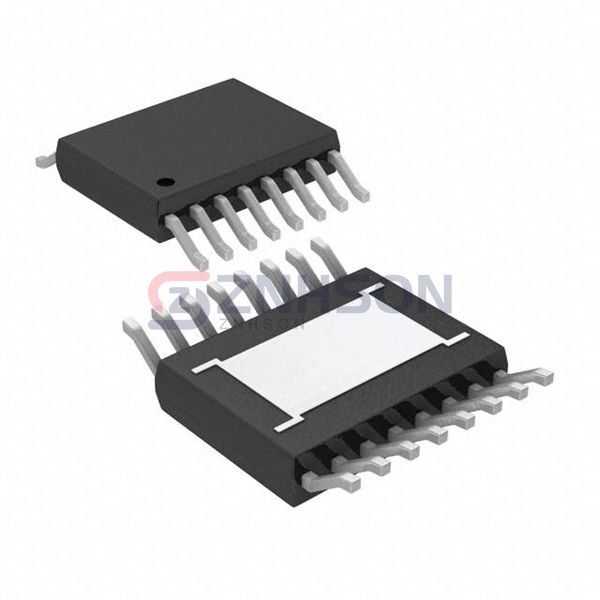

LT3091HFE#PBF

Analog Devices Inc.

Manufacturer

Analog Devices Inc.

Description:

IC REG LIN NEG ADJ 1.5A 16TSSOP

Datasheet:

LT3091HFE#PBF Datasheet

$7.36

Available to order

Reference Price (USD)

190+

$4.88600

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Discover the LT3091HFE#PBF linear voltage regulator IC by Analog Devices Inc., a standout product in our PMIC - Voltage Regulators - Linear category. This IC provides precise voltage regulation with ultra-low noise output, making it perfect for analog and RF circuits. The device features excellent PSRR (Power Supply Rejection Ratio) performance and comes in various package options to suit different design requirements. Linear regulators such as this LT3091HFE#PBF model are extensively used in consumer electronics (smartphones, tablets), IoT devices, and aerospace applications where consistent voltage without switching noise is essential. Its robust design ensures reliable operation in harsh environments with wide temperature ranges.

Specifications

Product Status: Active
Output Configuration: Negative
Output Type: Adjustable
Number of Regulators: 1
Voltage - Input (Max): -36V
Voltage - Output (Min/Fixed): 0V
Voltage - Output (Max): -32V
Voltage Dropout (Max): 0.45V @ 1.5A
Current - Output: 1.5A
Current - Quiescent (Iq): 50.5 µA
Current - Supply (Max): -
PSRR: 85dB ~ 20dB (120Hz ~ 1MHz)
Control Features: Current Limit, Enable
Protection Features: Over Current, Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature: -40°C ~ 150°C
Mounting Type: Surface Mount
Package / Case: 16-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package: 16-TSSOP-EP
