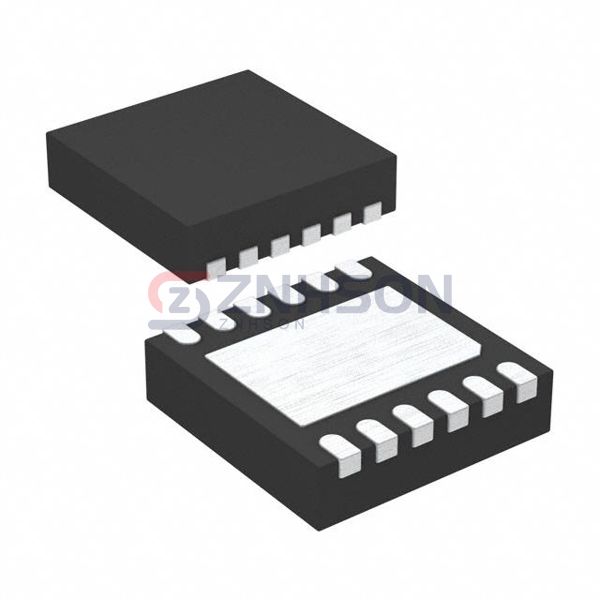

LT3094EDD#TRPBF

Analog Devices Inc.

Manufacturer

Analog Devices Inc.

Description:

IC REG LIN NEG ADJ 500MA 12DFN

Datasheet:

LT3094EDD#TRPBF Datasheet

$7.54

Available to order

Reference Price (USD)

2,500+

$3.53600

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The LT3094EDD#TRPBF from Analog Devices Inc. is a high-performance PMIC - Voltage Regulators - Linear IC that ensures stable and efficient power delivery for your electronic devices. This IC features low quiescent current, high accuracy, and robust thermal performance, making it a versatile solution for various applications. Whether you're designing for consumer electronics or industrial systems, the LT3094EDD#TRPBF provides the reliability you need. As a member of the PMIC - Voltage Regulators - Linear family, the LT3094EDD#TRPBF excels in delivering consistent voltage outputs with minimal deviation. Its advanced design includes protection features such as over-current and over-temperature shutdown, enhancing its durability and safety. These qualities make it a preferred choice for critical applications. The LT3094EDD#TRPBF is widely used in sectors like healthcare, automotive, and consumer electronics. For instance, it powers portable medical devices, in-car entertainment systems, and smart appliances. Its ability to deliver clean and stable power ensures the longevity and efficiency of your electronic designs.

Specifications

Product Status: Active
Output Configuration: Negative
Output Type: Adjustable
Number of Regulators: 1
Voltage - Input (Max): -2.3V
Voltage - Output (Min/Fixed): -19.5V
Voltage - Output (Max): 0V
Voltage Dropout (Max): 0.41V @ 500mA
Current - Output: 500mA
Current - Quiescent (Iq): 2.35 mA
Current - Supply (Max): 23 mA
PSRR: 108dB ~ 28dB (120Hz ~ 10MHz)
Control Features: Enable, Power Good, Soft Start
Protection Features: Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: 12-WFDFN Exposed Pad
Supplier Device Package: 12-DFN (3x3)
