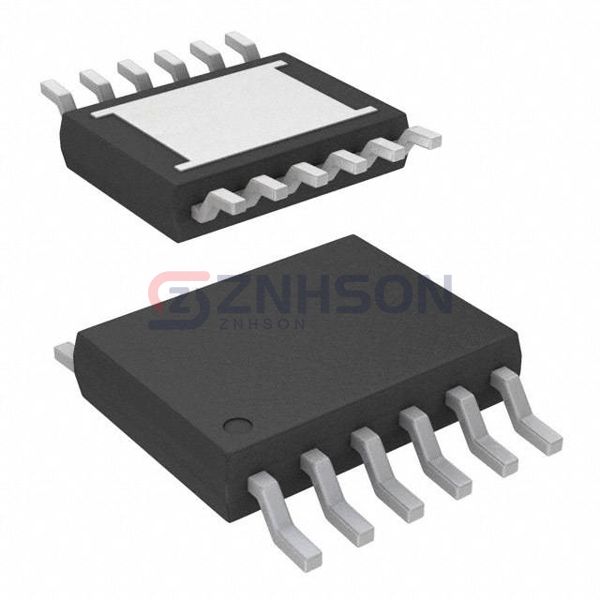

LT3094EMSE#TRPBF

Analog Devices Inc.

Manufacturer

Analog Devices Inc.

Description:

IC REG LIN NEG ADJ 500MA 12MSOP

Datasheet:

LT3094EMSE#TRPBF Datasheet

$7.54

Available to order

Reference Price (USD)

2,500+

$3.53600

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Analog Devices Inc.'s LT3094EMSE#TRPBF represents the cutting edge in linear voltage regulator technology within our Integrated Circuits (ICs) inventory. This PMIC component delivers fixed or adjustable output voltages with outstanding line and load regulation performance. The device incorporates advanced protection features including over-temperature and short-circuit protection, making it exceptionally reliable for critical applications. Linear voltage regulators like the LT3094EMSE#TRPBF are fundamental in automotive electronics (for infotainment systems and ECUs), industrial control systems, and telecommunications infrastructure where voltage stability is paramount. Engineers particularly value these ICs for their simplicity of design and minimal external component requirements.

Specifications

Product Status: Active
Output Configuration: Negative
Output Type: Adjustable
Number of Regulators: 1
Voltage - Input (Max): -2.3V
Voltage - Output (Min/Fixed): -19.5V
Voltage - Output (Max): 0V
Voltage Dropout (Max): 0.41V @ 500mA
Current - Output: 500mA
Current - Quiescent (Iq): 2.35 mA
Current - Supply (Max): 23 mA
PSRR: 108dB ~ 28dB (120Hz ~ 10MHz)
Control Features: Enable, Power Good, Soft Start
Protection Features: Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: 12-TSSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package: 12-MSOP-EP
