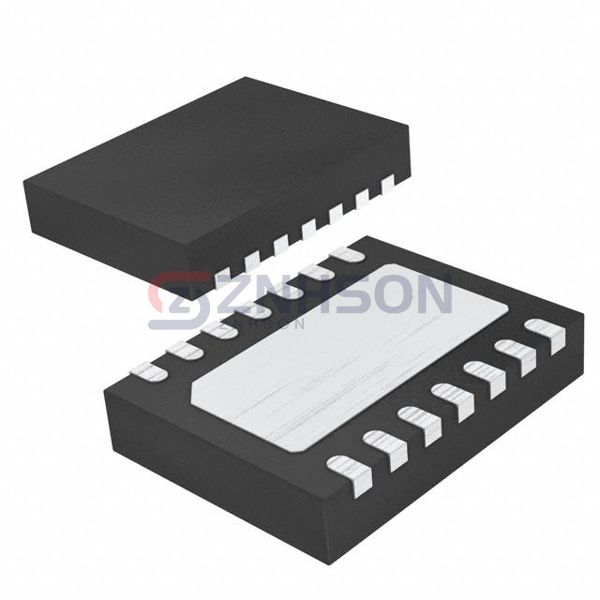

LT3509IDE#PBF
Analog Devices Inc.
Analog Devices Inc.
IC REG BUCK ADJ 700MA DL 14DFN
$9.11
Available to order
Reference Price (USD)
1+
$8.21000
25+
$5.45200
100+
$4.50800
250+
$4.28260
500+
$4.18600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The LT3509IDE#PBF by Analog Devices Inc. sets new standards in the PMIC - Voltage Regulators - DC DC Switching Regulators segment. This IC is specifically designed for portable medical devices, offering ultra-low noise and high efficiency for sensitive applications like patient monitoring and diagnostic equipment. Its small footprint and low power consumption make it ideal for battery-operated medical tools. With comprehensive protection features and medical-grade reliability, the LT3509IDE#PBF ensures safe operation in healthcare settings. Partner with Analog Devices Inc. for life-critical power management solutions.
Specifications
- Product Status: Active
- Function: Step-Down
- Output Configuration: Positive
- Topology: Buck
- Output Type: Adjustable
- Number of Outputs: 2
- Voltage - Input (Min): 3.6V
- Voltage - Input (Max): 36V
- Voltage - Output (Min/Fixed): 0.8V
- Voltage - Output (Max): 34.2V
- Current - Output: 700mA
- Frequency - Switching: 260kHz ~ 2.15MHz
- Synchronous Rectifier: No
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 14-WFDFN Exposed Pad
- Supplier Device Package: 14-DFN (4x3)
