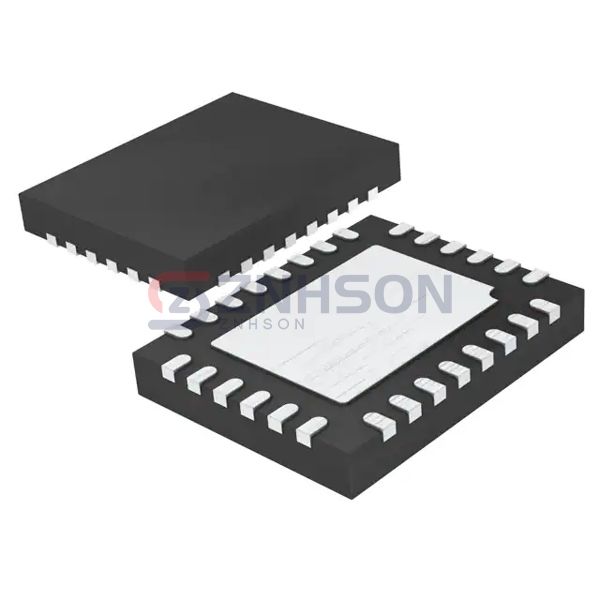

LTC3784EUFD#PBF

Analog Devices Inc.

Manufacturer

Analog Devices Inc.

Description:

IC REG CTRLR BOOST 28QFN

Datasheet:

LTC3784EUFD#PBF Datasheet

$10.07

Available to order

Reference Price (USD)

$9.10000

25+

$6.04480

100+

$4.99800

250+

$4.74812

500+

$4.64100

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The LTC3784EUFD#PBF from Analog Devices Inc. is a cutting-edge DC DC Switching Controller designed for the PMIC - Voltage Regulators segment. With features like programmable frequency, over-current protection, and high efficiency, this IC is ideal for use in telecommunications, automotive, and industrial applications. Examples include base stations, electric vehicle charging systems, and factory automation equipment. Analog Devices Inc.'s LTC3784EUFD#PBF stands out for its reliability and performance, ensuring seamless power conversion in any environment.

Specifications

Product Status: Active
Output Type: Transistor Driver
Function: Step-Up
Output Configuration: Positive
Topology: Boost
Number of Outputs: 2
Output Phases: 2
Voltage - Supply (Vcc/Vdd): 4.5V ~ 60V
Frequency - Switching: 105kHz ~ 760kHz
Duty Cycle (Max): 96%
Synchronous Rectifier: Yes
Clock Sync: No
Serial Interfaces: -
Control Features: Current Limit, Enable, Frequency Control, Power Good, Soft Start
Operating Temperature: -40°C ~ 125°C (TJ)
Mounting Type: Surface Mount
Package / Case: 28-WFQFN Exposed Pad
Supplier Device Package: 28-QFN (4x5)
