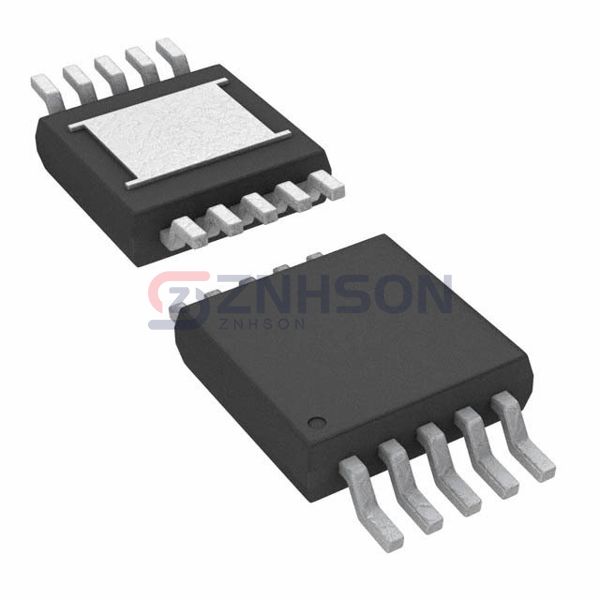

LTC3805EMSE
Analog Devices Inc.
Analog Devices Inc.
IC REG CTRLR FLYBACK 10MSOP
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your power solutions with the LTC3805EMSE, a high-performance DC DC Switching Controller by Analog Devices Inc.. This IC, belonging to the PMIC - Voltage Regulators category, offers exceptional efficiency, low EMI, and robust design. It is widely used in applications such as renewable energy systems, medical imaging devices, and military electronics. The LTC3805EMSE by Analog Devices Inc. is engineered to provide consistent and reliable voltage regulation, even in the most challenging conditions.
Specifications
- Product Status: Obsolete
- Output Type: Transistor Driver
- Function: Step-Up, Step-Up/Step-Down
- Output Configuration: Positive, Isolation Capable
- Topology: Boost, Flyback, SEPIC
- Number of Outputs: 1
- Output Phases: 1
- Voltage - Supply (Vcc/Vdd): 8.8V
- Frequency - Switching: 70kHz ~ 700kHz
- Duty Cycle (Max): 80%
- Synchronous Rectifier: No
- Clock Sync: Yes
- Serial Interfaces: -
- Control Features: Enable, Soft Start
- Operating Temperature: -40°C ~ 85°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad
- Supplier Device Package: 10-MSOP-EP
