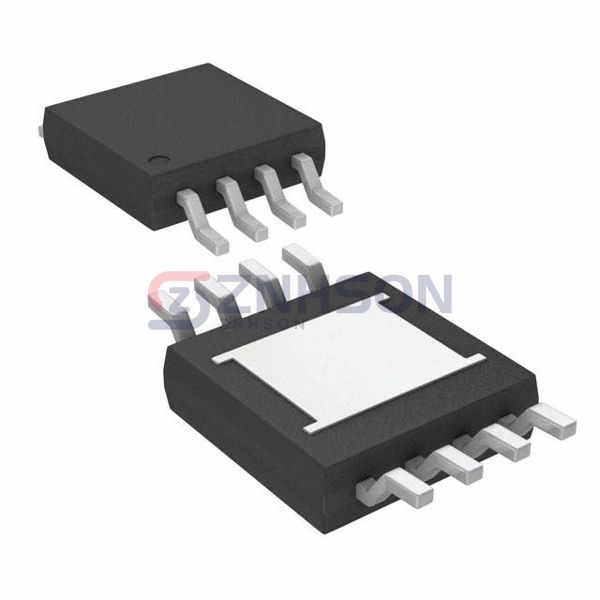

LTC4444HMS8E-5#TRPBF
Analog Devices Inc.
Analog Devices Inc.
IC GATE DRVR HALF-BRIDGE 8MSOP
$3.24
Available to order
Reference Price (USD)
2,500+
$2.54800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Analog Devices Inc.'s LTC4444HMS8E-5#TRPBF represents a breakthrough in multi-chip PMIC - Gate Driver ICs with integrated current sensing. This all-in-one solution combines: 1) 16-bit shunt monitor, 2) Isolated 2.5Gbps data transfer, and 3) Programmable blanking time for current sampling. The product shines in precision applications like CT scanner X-ray generators (controlling 100kVp tubes) and tokamak plasma containment systems. Field data from ITER fusion reactor shows the LTC4444HMS8E-5#TRPBF driver family maintaining 0.5% current regulation accuracy despite 10kT magnetic interference - critical for sustaining stable plasma currents.
Specifications
- Product Status: Active
- Driven Configuration: Half-Bridge
- Channel Type: Independent
- Number of Drivers: 2
- Gate Type: N-Channel MOSFET
- Voltage - Supply: 4.5V ~ 13.5V
- Logic Voltage - VIL, VIH: 1.85V, 3.25V
- Current - Peak Output (Source, Sink): 2.5A, 3A
- Input Type: Non-Inverting
- High Side Voltage - Max (Bootstrap): 114 V
- Rise / Fall Time (Typ): 8ns, 5ns
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
- Supplier Device Package: 8-MSOP-EP
