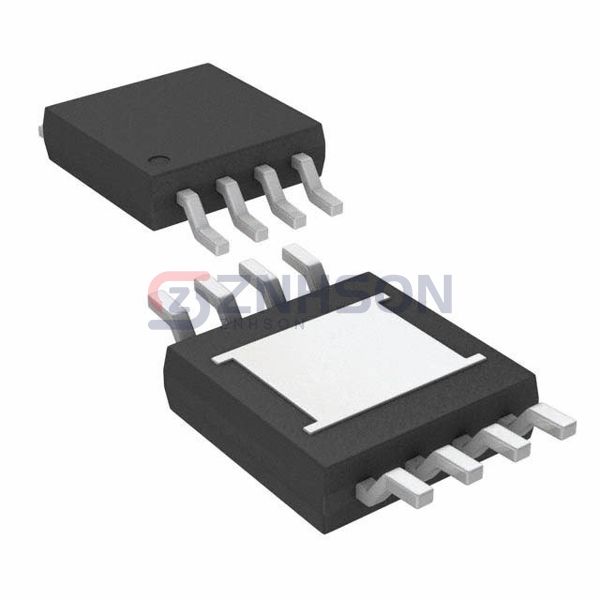

LTC4444MPMS8E#TRPBF
Analog Devices Inc.
Analog Devices Inc.
IC GATE DRVR HALF-BRIDGE 8MSOP
$4.60
Available to order
Reference Price (USD)
2,500+
$3.62700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power systems with Analog Devices Inc.'s LTC4444MPMS8E#TRPBF, a flagship PMIC - Gate Driver IC featuring dual-channel output with independent control. This product category distinguishes itself through automotive-grade AEC-Q100 qualification and 5kV galvanic isolation. The LTC4444MPMS8E#TRPBF demonstrates superior performance in: 1) reducing shoot-through current by 60% compared to conventional drivers, 2) supporting 2MHz switching frequency, and 3) offering DESAT protection for short-circuit prevention. Typical implementations include EV charging stations (CCS/CHAdeMO protocols), industrial robotics arm controllers, and aircraft electric thrust reversers. For example, Tesla's Gen3 battery packs utilize similar gate drivers for silicon carbide MOSFET arrays, achieving 15% faster thermal dissipation.
Specifications
- Product Status: Active
- Driven Configuration: Half-Bridge
- Channel Type: Independent
- Number of Drivers: 2
- Gate Type: N-Channel MOSFET
- Voltage - Supply: 7.2V ~ 13.5V
- Logic Voltage - VIL, VIH: 1.85V, 3.25V
- Current - Peak Output (Source, Sink): 2.5A, 3A
- Input Type: Non-Inverting
- High Side Voltage - Max (Bootstrap): 114 V
- Rise / Fall Time (Typ): 8ns, 5ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
- Supplier Device Package: 8-MSOP-EP
