LTC7004MPMSE#PBF
Analog Devices Inc.
Analog Devices Inc.

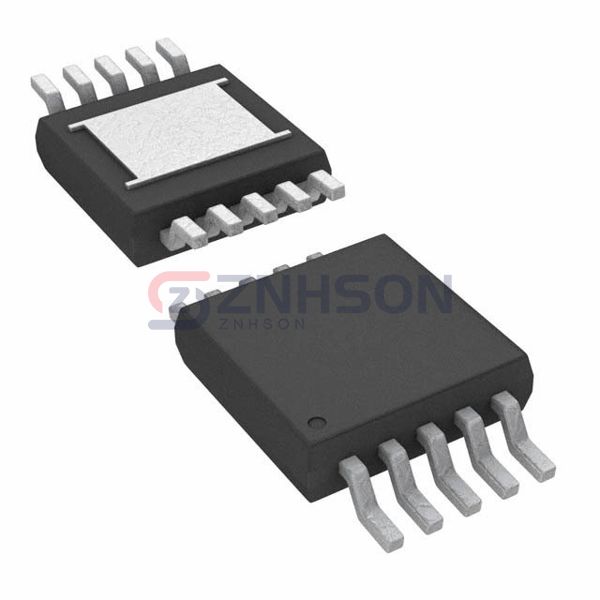

IC GATE DRVR HIGH-SIDE 10MSOP
$13.62
Available to order
Reference Price (USD)
1+
$14.05000
25+
$9.32960
100+
$7.71400
250+
$7.32832
500+
$7.16300
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Analog Devices Inc.'s LTC7004MPMSE#PBF represents the cutting edge of PMIC - Gate Driver technology, engineered to deliver unmatched switching performance for power electronics. This IC classification specializes in synchronous rectification and half-bridge configurations with integrated bootstrap diodes. Notable characteristics comprise UVLO protection, programmable turn-on/off thresholds, and 4A peak output current capacity. Primary applications span data center power supplies, welding equipment, and DC-DC converters. A concrete example: the LTC7004MPMSE#PBF enables 98% efficiency in 1kW telecom power modules while withstanding 100V/ns common-mode transients. The device's reinforced isolation meets IEC 61800-5-1 standards, particularly valuable for medical imaging systems and railway traction converters.
Specifications
- Product Status: Active
- Driven Configuration: High-Side
- Channel Type: Single
- Number of Drivers: 1
- Gate Type: N-Channel MOSFET
- Voltage - Supply: 3.5V ~ 15V
- Logic Voltage - VIL, VIH: -
- Current - Peak Output (Source, Sink): -
- Input Type: Non-Inverting
- High Side Voltage - Max (Bootstrap): 60 V
- Rise / Fall Time (Typ): 90ns, 40ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad
- Supplier Device Package: 10-MSOP-EP
