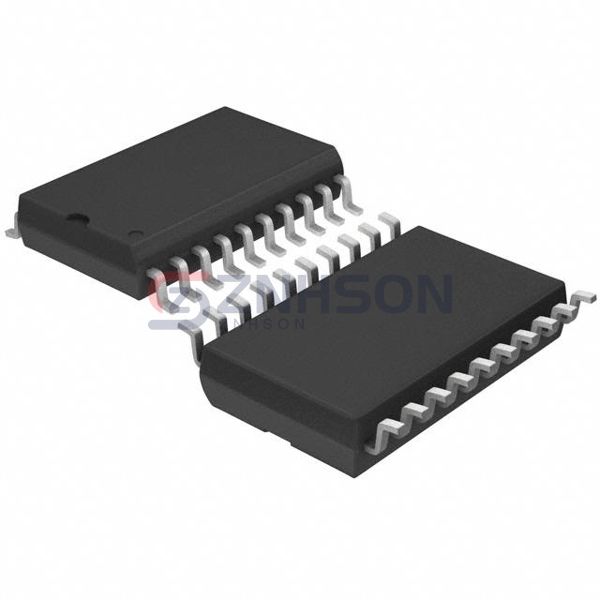

LTC7545ABSW#PBF
Analog Devices Inc.
Analog Devices Inc.
IC DAC 12BIT A-OUT 20SOIC
$12.41
Available to order
Reference Price (USD)
1+
$10.66000
25+
$7.07760
100+
$5.85200
250+
$5.55940
500+
$5.43400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the LTC7545ABSW#PBF, a high-efficiency DAC from Analog Devices Inc. designed for next-generation data acquisition systems. This IC is perfect for applications in smart grids, wearable technology, and virtual reality, offering low distortion and high signal integrity. The LTC7545ABSW#PBF supports multiple input formats and provides excellent noise rejection. Trust Analog Devices Inc. to deliver a DAC that meets the highest industry standards.
Specifications
- Product Status: Active
- Number of Bits: 12
- Number of D/A Converters: 1
- Settling Time: 1µs
- Output Type: Current - Unbuffered
- Differential Output: No
- Data Interface: Parallel
- Reference Type: External
- Voltage - Supply, Analog: 5V, 14.25V ~ 15.75V
- Voltage - Supply, Digital: 5V, 14.25V ~ 15.75V
- INL/DNL (LSB): ±0.5 (Max), ±1 (Max)
- Architecture: R-2R
- Operating Temperature: -40°C ~ 85°C
- Package / Case: 20-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 20-SO
- Mounting Type: Surface Mount
