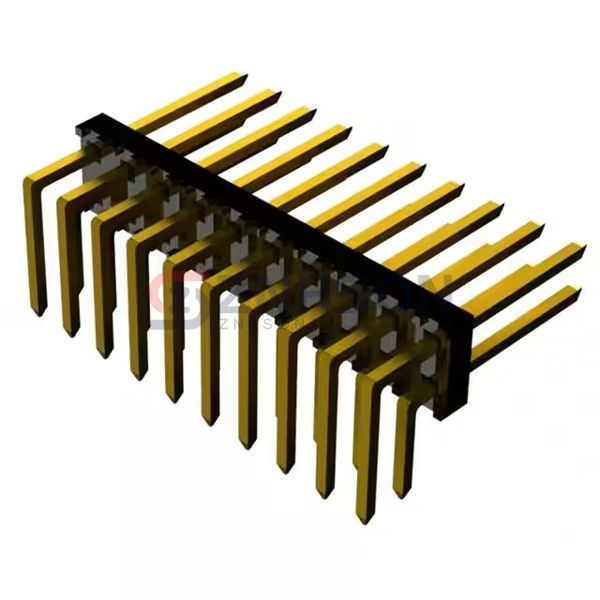

LTSHR-140-S-04-B-GT-LF
Major League Electronics
Major League Electronics
.100 Header
$1.77
Available to order
Reference Price (USD)
1+
$1.77000
500+
$1.7523
1000+
$1.7346
1500+
$1.7169
2000+
$1.6992
2500+
$1.6815
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The LTSHR-140-S-04-B-GT-LF male pin header by Major League Electronics offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose Major League Electronics for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 40
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.318" (8.08mm)
- Overall Contact Length: -
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA6T), Nylon 6T
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
1-1827581-4
Samtec Inc.
TSW-123-08-L-S
Hirose Electric Co Ltd
DF11-10DP-2V(57)
Samtec Inc.
ZSS-110-07-S-D-1105
Samtec Inc.

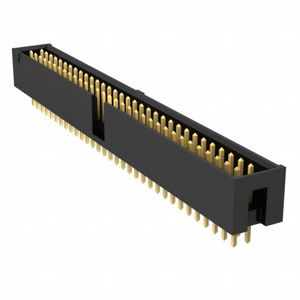

TSS-132-02-G-D
Sullins Connector Solutions

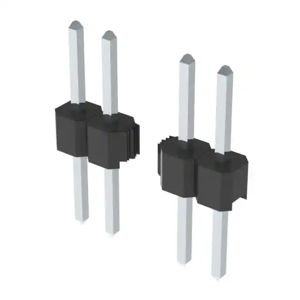

PREC029SABN-RC
Samtec Inc.

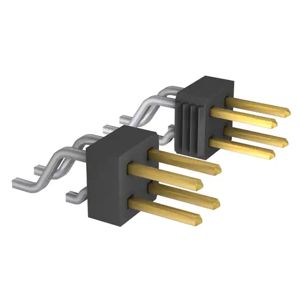

TSM-115-01-L-DH
