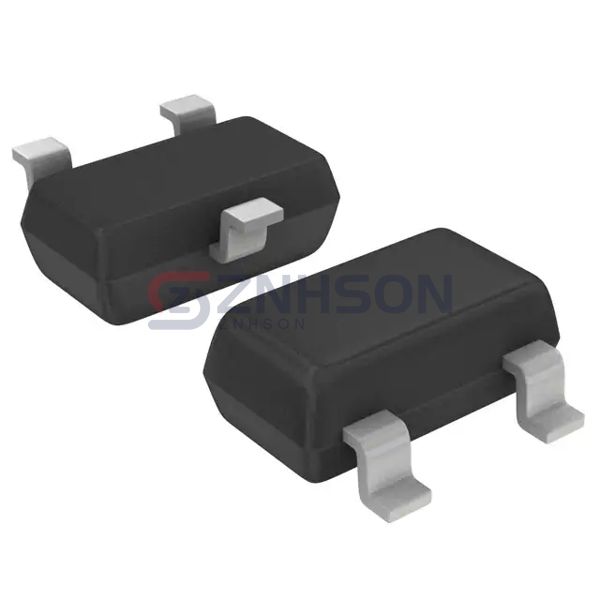

M1MA152WAT1G
onsemi
onsemi
DIODE ARRAY GP 80V 100MA SC59
$0.26
Available to order
Reference Price (USD)
3,000+
$0.02499
6,000+
$0.02254
15,000+
$0.01960
30,000+
$0.01764
75,000+
$0.01568
150,000+
$0.01372
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The M1MA152WAT1G rectifier array from onsemi redefines efficiency in the Diodes - Rectifiers - Arrays classification. Its optimized chip geometry enables higher surge withstand capability, critical for automotive alternators and arc suppression circuits. This product shines in three-phase rectification and snubber networks, offering aerospace-grade reliability. onsemi's precision manufacturing ensures each M1MA152WAT1G meets stringent quality standards for mission-critical applications.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Anode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 80 V
- Current - Average Rectified (Io) (per Diode): 100mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 1.2 V @ 100 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 10 ns
- Current - Reverse Leakage @ Vr: 100 nA @ 75 V
- Operating Temperature - Junction: 150°C (Max)
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SC-59
