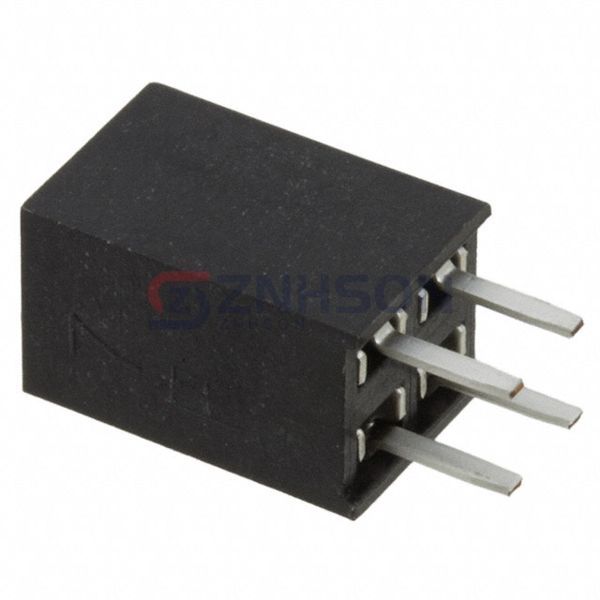

M20-7830246
Harwin Inc.
Harwin Inc.
CONN RCPT 4POS 0.1 TIN PCB
$1.18
Available to order
Reference Price (USD)
1+
$0.93000
10+
$0.81600
104+
$0.70404
520+
$0.57600
1,040+
$0.51200
5,096+
$0.44800
10,088+
$0.42560
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic assemblies with M20-7830246 Harwin Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors provide secure, high-density connections for compact devices and complex systems. With options for surface mount, through-hole, and press-fit terminations, they cater to diverse design requirements. Ideal for wearable technology, test & measurement instruments, and LED lighting, Harwin Inc. connectors deliver consistent quality. Applications include fitness trackers, oscilloscopes, and architectural lighting systems.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board or Cable
- Number of Positions: 4
- Number of Positions Loaded: All
- Pitch - Mating: 0.100" (2.54mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Insulation Color: Black
- Insulation Height: 0.335" (8.51mm)
- Contact Length - Post: 0.118" (3.00mm)
- Operating Temperature: -40°C ~ 105°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: 11.04mm, 12.63mm
- Ingress Protection: -
- Features: -
- Current Rating (Amps): 3A
- Voltage Rating: 1000V
Related Products
Samtec Inc.
HLE-112-02-L-DV-PE-BE-TR
Samtec Inc.
SQT-115-03-S-Q
Samtec Inc.
SSW-150-02-G-S
Samtec Inc.
MLE-117-01-G-DV-P-TR
Samtec Inc.

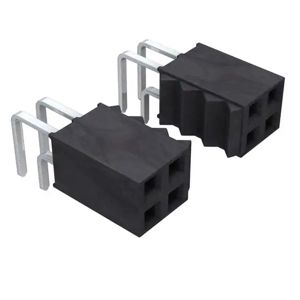

SSW-128-02-S-D-RA
Preci-Dip

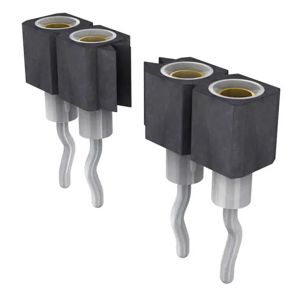

831-87-016-10-230101
Amphenol ICC (FCI)

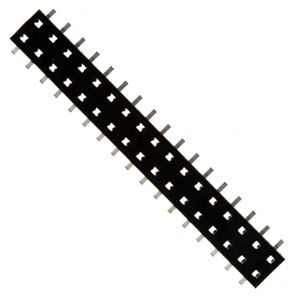

55510-134LF
Preci-Dip

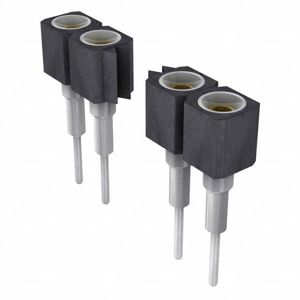

316-87-106-41-003101
TE Connectivity AMP Connectors

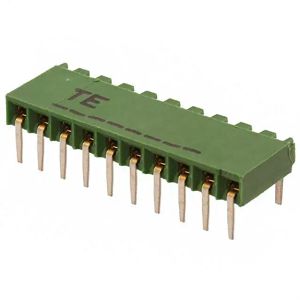

1-216602-0
