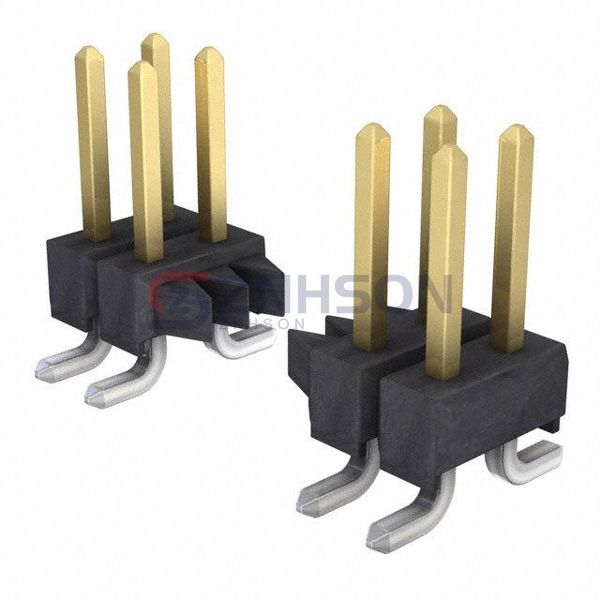

M20-8750742
Harwin Inc.
Harwin Inc.
CONN HEADER SMD 14POS 2.54MM
$1.26
Available to order
Reference Price (USD)
1+
$0.98000
34+
$0.81353
102+
$0.74578
510+
$0.61020
1,020+
$0.54240
5,032+
$0.47460
10,030+
$0.45087
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The M20-8750742 by Harwin Inc. is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Harwin Inc. delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.228" (5.80mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA6T), Nylon 6T, Glass Filled
- Features: Board Guide
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A per Contact
- Voltage Rating: -
Related Products
Samtec Inc.
MMT-110-02-TM-DH-K-TR
Samtec Inc.
TSM-106-01-LM-SH-004-P-TR
TE Connectivity AMP Connectors
2-292262-6
Preci-Dip
802-10-010-10-001101
Molex
0436500803
Amphenol ICC (FCI)
77311-418-17LF
Harwin Inc.
M22-2041605
TE Connectivity AMP Connectors

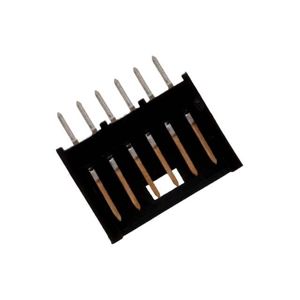

280372-2
TE Connectivity AMP Connectors

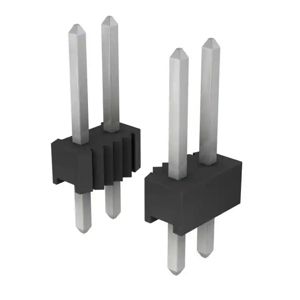

5-146258-7
