M22-2580946
Harwin Inc.
Harwin Inc.
CONN HEADER VERT 18POS 2MM
$0.76
Available to order
Reference Price (USD)
1,000+
$0.59360
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the M22-2580946 rectangular connector header from Harwin Inc.. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the M22-2580946 is perfect for automotive, industrial, and consumer electronics. Harwin Inc. ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header, Cuttable
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 18
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.197" (5.00mm)
- Contact Length - Post: 0.091" (2.30mm)
- Overall Contact Length: 0.346" (8.80mm)
- Insulation Height: 0.059" (1.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA6T), Nylon 6T
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: -
Related Products
Amphenol ICC (FCI)
20021121-00050T4LF
Mill-Max Manufacturing Corp.
850-10-022-10-001000
Samtec Inc.
TSM-126-01-SM-DV-A-P-TR
Amphenol ICC (FCI)
68764-403HLF
Samtec Inc.
FTSH-112-04-F-MT
Samtec Inc.
TSM-113-02-S-SH-P
Samtec Inc.
FTE-124-02-G-DV-A
Harwin Inc.

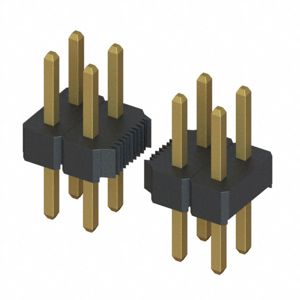

M22-2020705
